WM, 554055 Replacing Electric Power Supply Flap (Module)
>>
Technical Values
Technical Values
Location
Description
Type
Basic value
Tolerance 1
Tolerance 2
Charging socket lock to electric power supply flap (module)
Item 2
Tightening torque
2.5 Nm (1.75 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

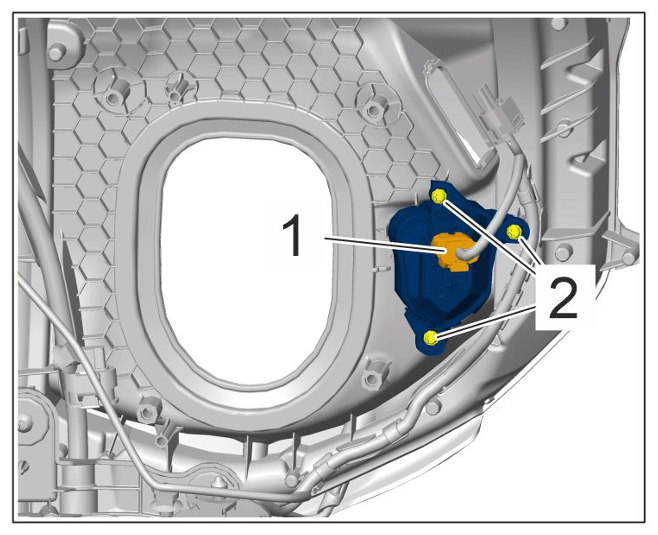

Charging socket lock
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
