Removing The Electric Wire Harness For The Electric Power Supply Flap (Module)

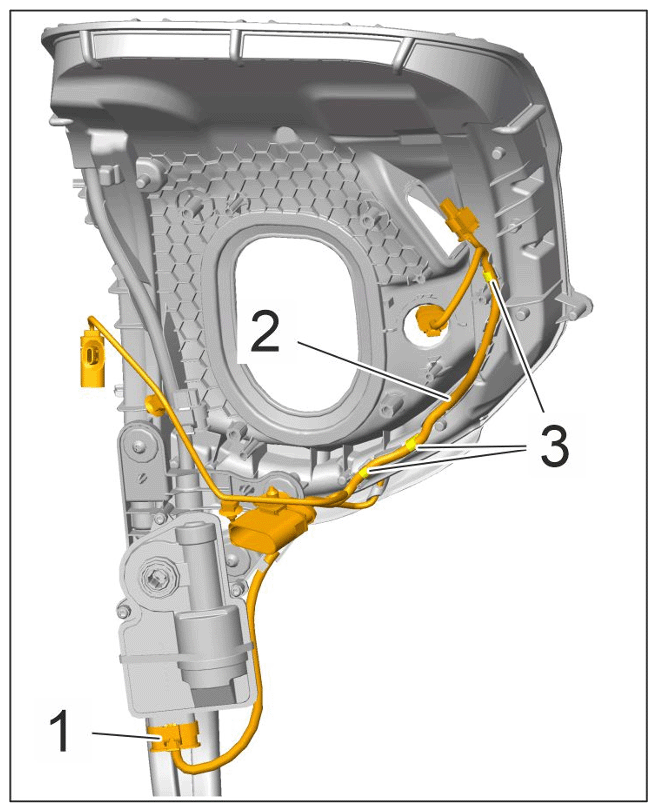

  1. Release and disconnect the electric plug connection, -1-  detach the electric wire harness for the electric power supply flap (module) -2-  from the holder -3-  and remove it.
G15563360Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric wire harness
