Removing The Charging Socket Lock For The Electric Power Supply Flap (Module)

Removing the locking mechanism for the electric power supply flap (module)

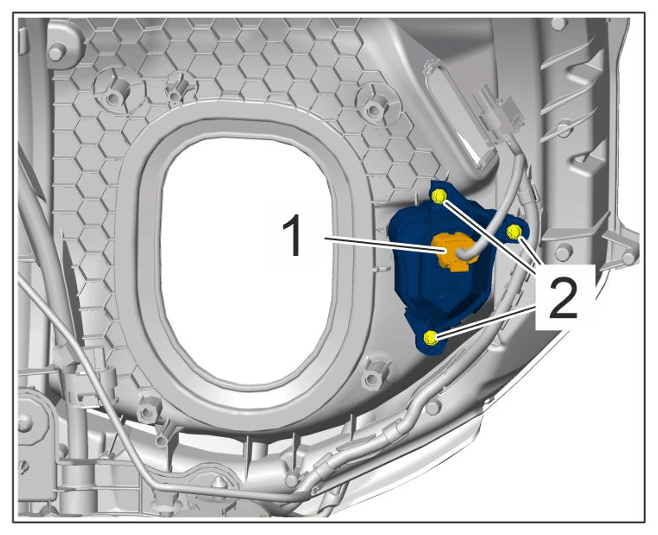

1. Unlock and disconnect electric plug connection -1-  , unscrew screws -2-  and remove the locking mechanism for the electric power supply flap (module).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Charging socket lock
