Removing Lighting For Electrical Power Supply Flap (Module)

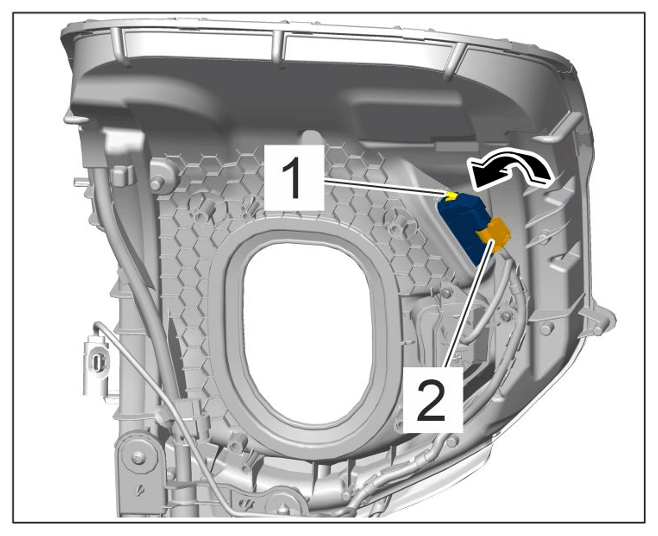

  1. Release clip -1-  , swivel out lighting for electrical power supply flap (module) -2-  and remove it -arrow-  .
    G15563357Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Lighting for electrical power supply flap (module)
