Removing The Power Supply Flap Sensor

  1. Release and disconnect electric plug connection.

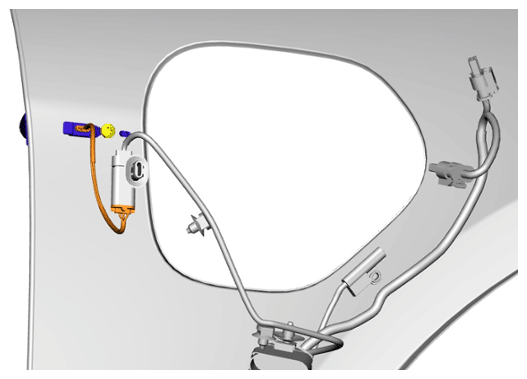

    G15563323Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

  2. Unscrew the screw and remove energy supply flap sensor.

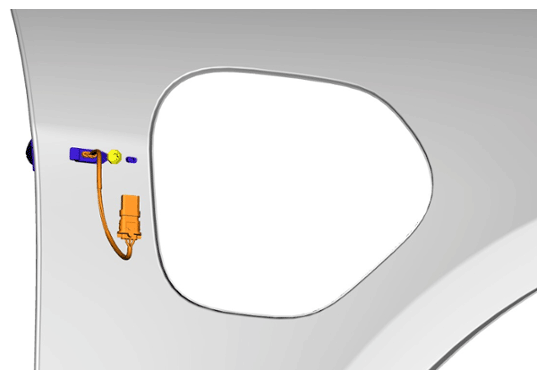

    G15563324Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Power supply flap sensor
