Removing Switching Element For Lid

  1. Release and disconnect electric plug connection.

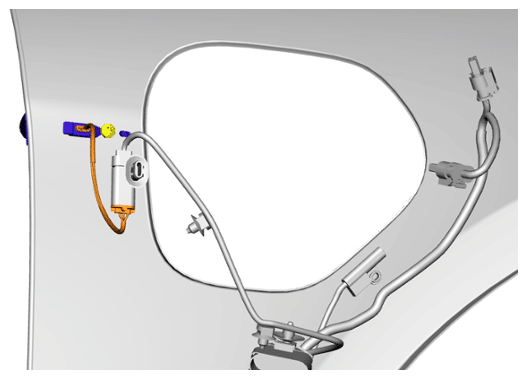

    G15563319Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

  2. Unscrew screw and remove switching element for electric power supply lid.

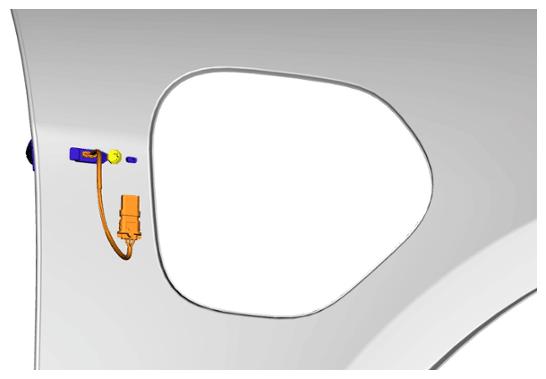

    G15563320Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Switching element for electric power supply lid
