Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Screws securing front lid hinge to body Item 2 Tightening torque 20 Nm (15 ftlb.)

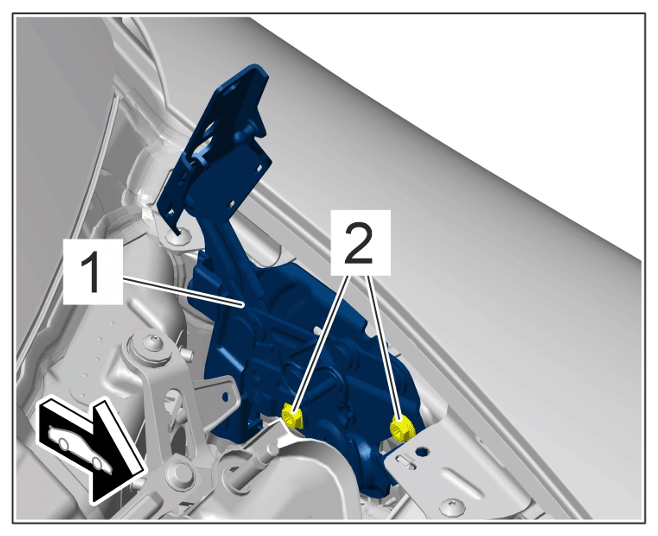

G15563306Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front lid hinge
