Removing Front Lid

Information

• Some repairs are shown only on one side of the vehicle.
• Some steps also have to be performed on the opposite side of the vehicle as well.

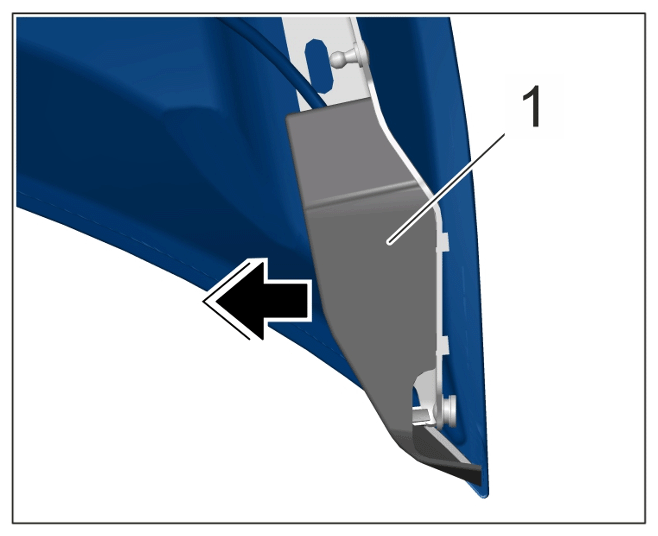

1. Unclip cover on hinge -1-  and remove it -arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cover on hinge

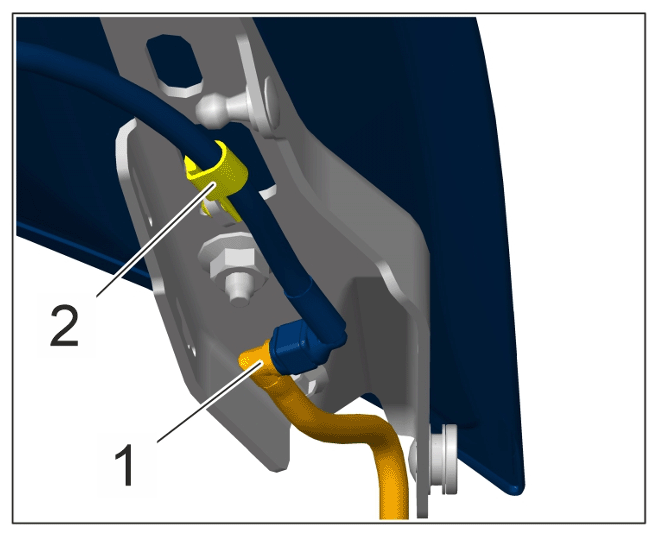

2. Loosen windscreen wiper system line -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Windscreen wiper system line

   1. 2.1 Unclip clip -2-  .
   2. 2.2 Release and disconnect windscreen wiper system line -1-  .

   Information

   The help of another person is required.

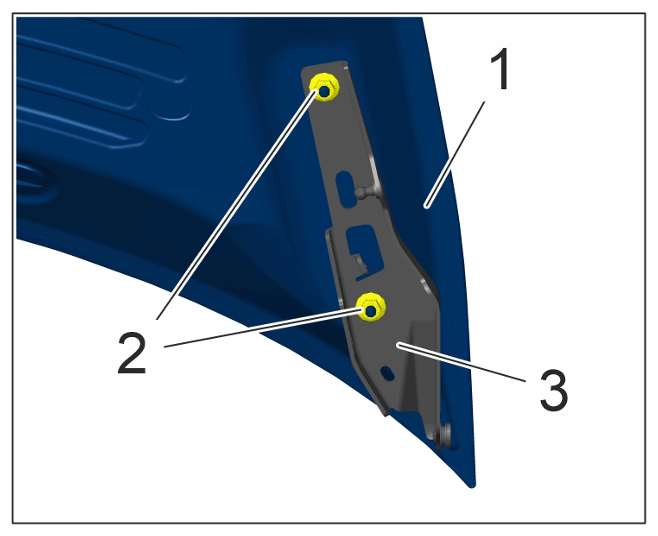

3. Unscrew nuts -2-  and remove front lid -1-  from front lid hinge -3-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front lid
