Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Screws securing upper part of front lock to front lid Item 2 Tightening torque 8 Nm (6 ftlb.)
G15563281Courtesy of PORSCHE CARS NORTH AMERICA, INC.

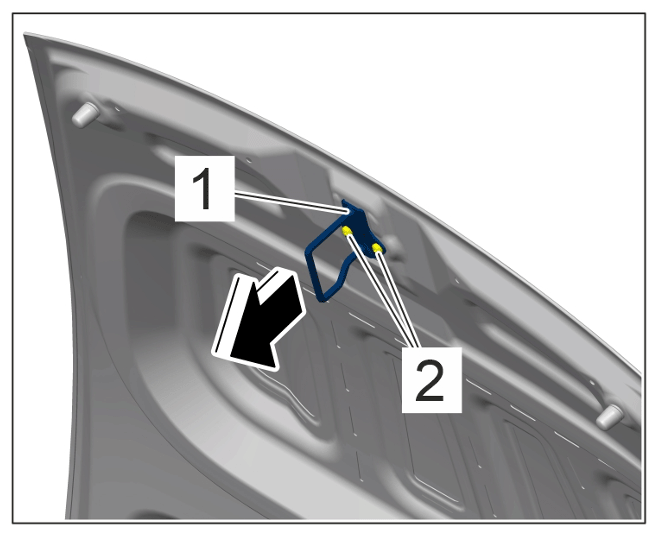

Upper part of front lock
