Removing Front Lock Lower Part

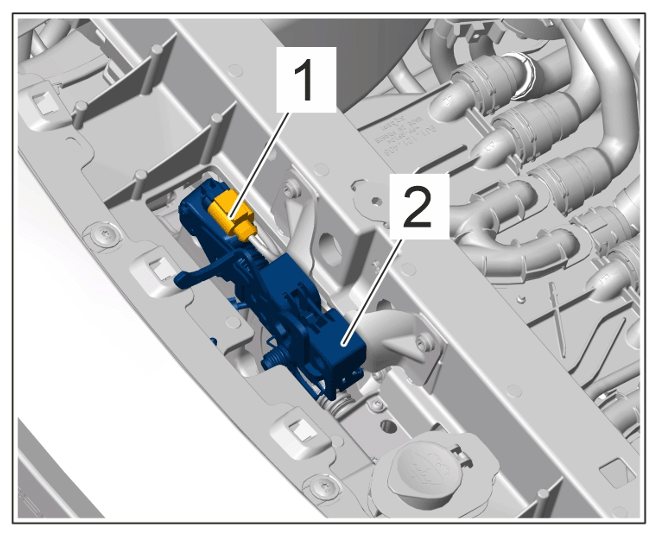

1. Release and disconnect electric plug connection -1-  on lower part of front lock -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection

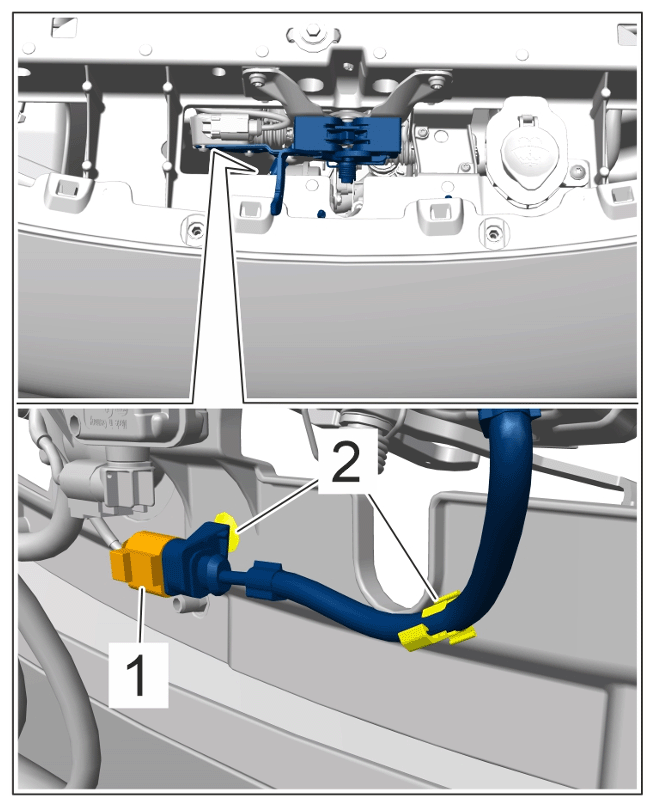

2. Release and disconnect electric plug connection -1-  and unclip clips -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection

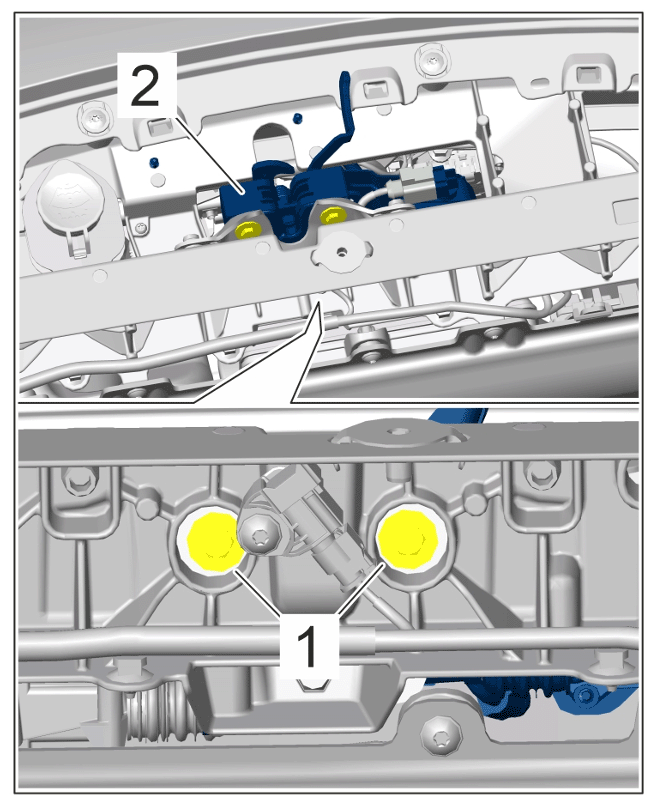

3. Unscrew screws -1-  and remove lower part of front lock -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
