Removing Over The Air Control Unit

Information

Switch off all loads, end operational readiness on the vehicle and keep transmitter key outside of the transmission range (at least 5 meters).

Information

Always comply with the regulations for handling ESD-sensitive components!

• Always wear approved work clothes and shoes when carrying out assembly work.
• Do not remove new parts from ESD (electrostatic discharge) protective packaging until shortly before installation.
• Do not touch electric pins and plug contacts.

1. Loosen over-the-air control unit.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

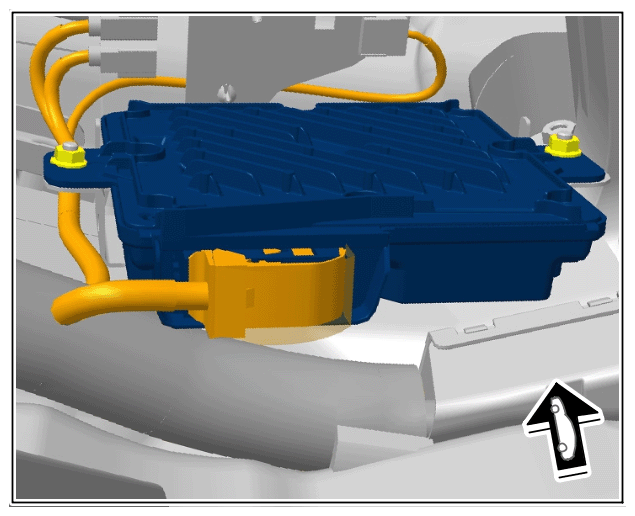

   Over-the-air control unit

   1. 1.1  Unscrew nuts on over-the-air control unit.
   2. 1.2  Remove over-the-air control unit from holder.
2. Release and pull off electric plug connection.
