Removing Front Connection Box

NOTE: NOTIFICATION
Voltage peaks
  • Risk of damage to electrical load or to the control unit
    • Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).
    • Switch off electrical loads before disconnecting or removing them.
  1. Remove front connection box -2-  .

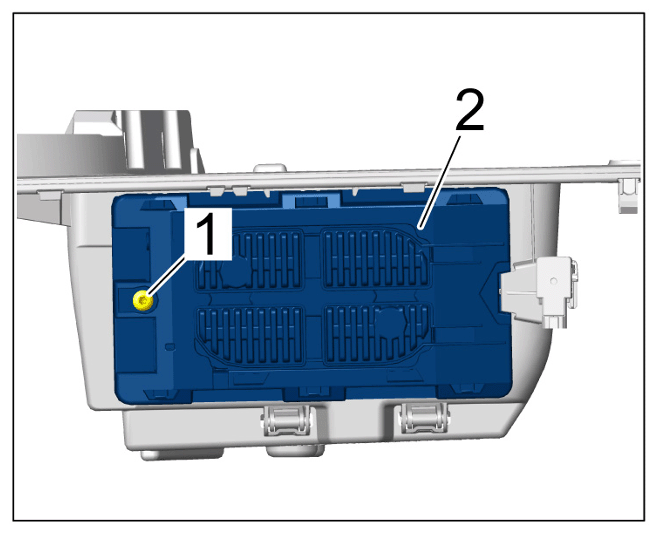

    G15566620Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screw for front connection box

    1. 1.1  Unscrew screw -1-  .
    2. 1.2  Remove front connection box -2-  .
