Removing Etc/Dsrc Antenna (Japan)

  1. Remove ETC/DSRC antenna (Japan) -3-  .

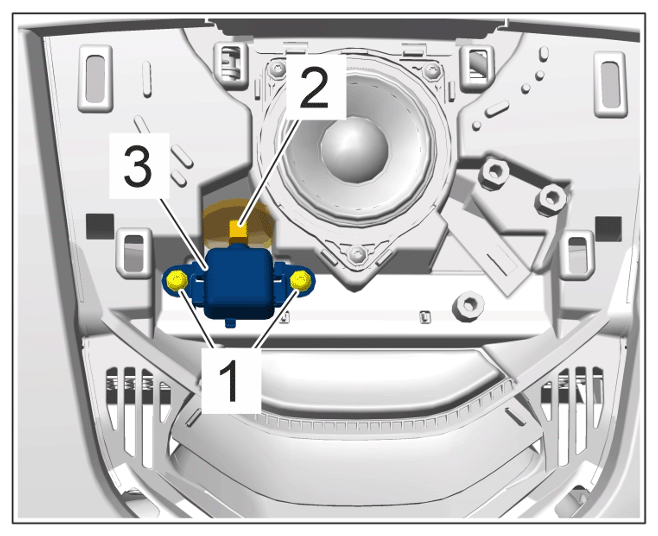

    G15566610Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws

    1. 1.1  Unscrew and remove screws -1-  .
    2. 1.2  Release and unplug electric plug connection -2-  .
    3. 1.3  Remove ETC/DSRC antenna (Japan) -3-  .
