Removing The DSRC Card Reader

NOTE: NOTIFICATION
Voltage peaks

Risk of damage to electrical load or to the control unit
- Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).
- Switch off electrical loads before disconnecting or removing them.

Remove the DSRC card reader (Japan) -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

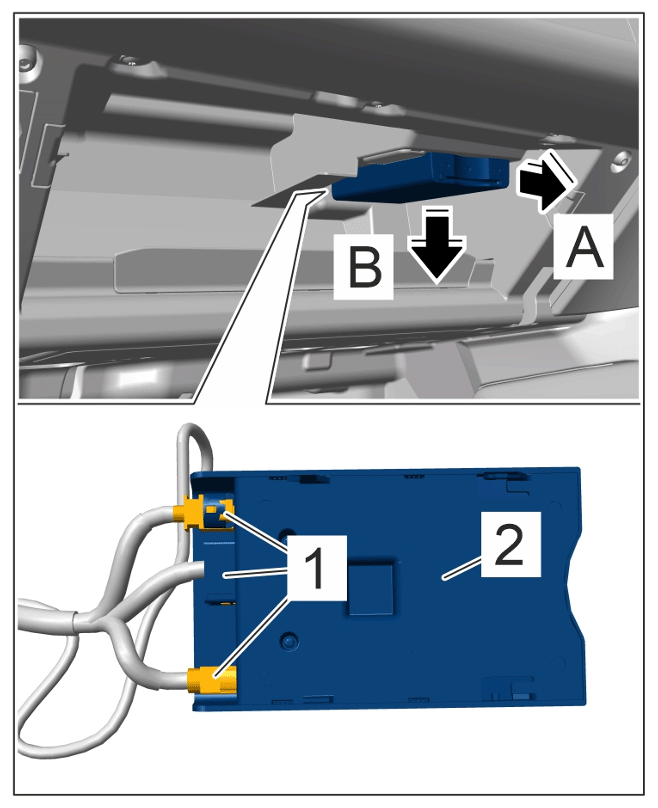

Electric plug connections
1. 1.1 Release -arrow A- and pull out -arrow B- DSRC card reader (Japan) -2- .
2. 1.2 Release and unplug electric plug connections -1- .
3. 1.3 Remove the DSRC card reader (Japan) -2- .
