Removing Front PARKASSIST Sensor

  1. Remove front Park Assist sensor -1-  .
    1. 1.1  Press bracket -3-  apart.
    2. 1.2  Release and disconnect electric plug connection -2-  .
    3. 1.3  Remove front Park Assist sensor -1-  .

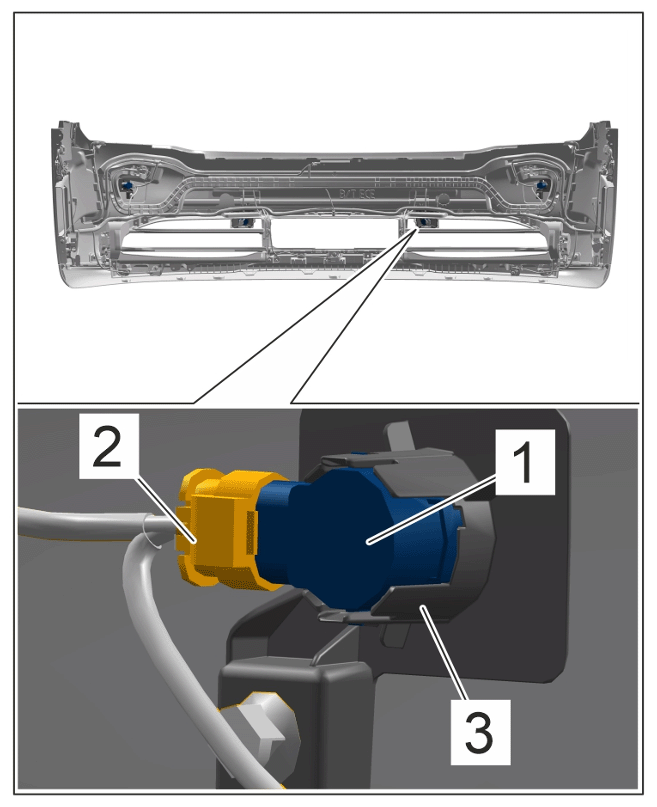

      G15566604Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Front Park Assist sensor
