Removing Outside Temperature Sensor

  1. Remove outside temperature sensor -1-  .

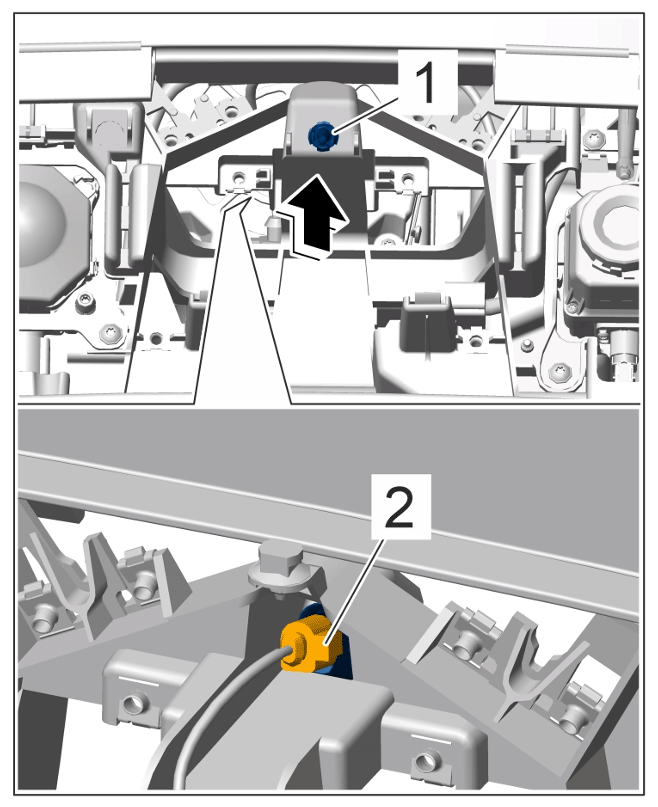

    G15566583Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Outside temperature sensor

    1. 1.1  Release outside temperature sensor -1-  by moving it to the rear -arrow-  .
    2. 1.2  Release and unplug electric plug connection -2-  .
    3. 1.3  Remove outside temperature sensor -1-  .
