Removing BURMESTER Loudspeaker Booster

NOTE: NOTIFICATION
Voltage peaks

Risk of damage to electrical load or to the control unit
→ Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).

→ Switch off electrical loads before disconnecting or removing them.

Information

Always comply with the regulations for handling ESD-sensitive components!

Always wear approved work clothes and shoes when carrying out assembly work.
Do not remove new parts from ESD (electrostatic discharge) protective packaging until shortly before installation.
Do not touch electric pins and plug contacts.

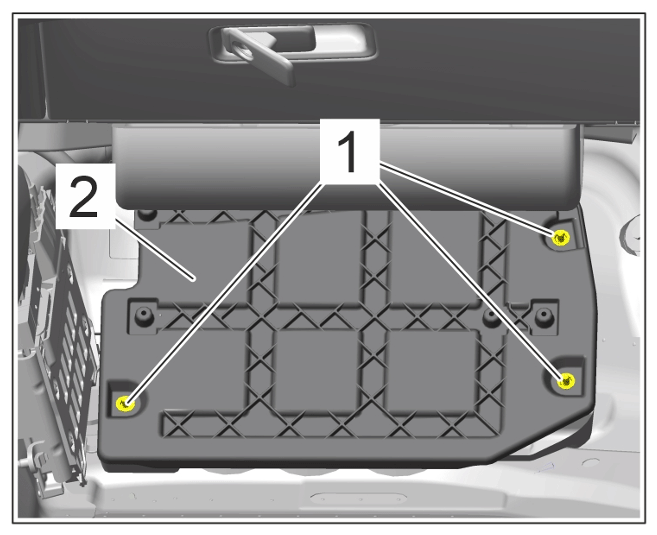

Unscrew screws -1- and pull out the footrest -2- until the electric plug connections can be released and disconnected.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Footrest

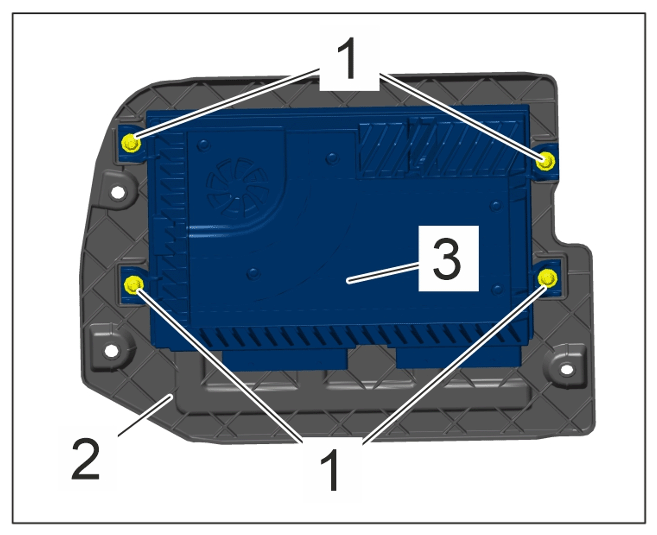

Unscrew screws -1- and remove Burmester loudspeaker booster -3- from the footrest -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Burmester loudspeaker booster
