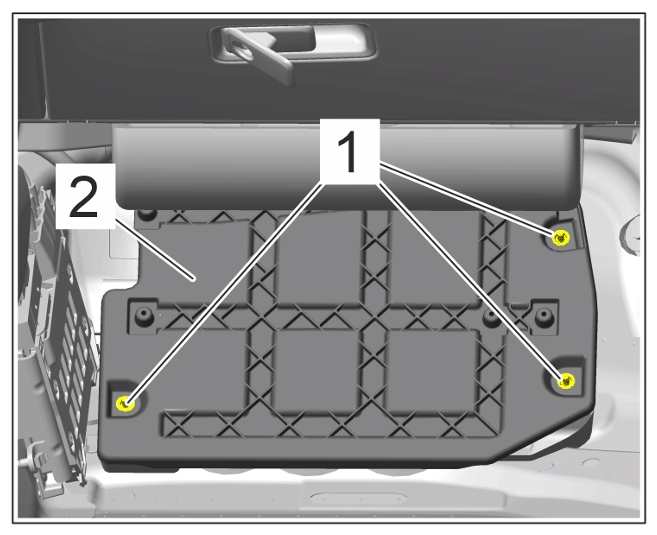

| Nuts securing footrest to bracket |
Item 1 |
Tightening torque |
4 Nm (3 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Footrest |
|
|
|
|
|

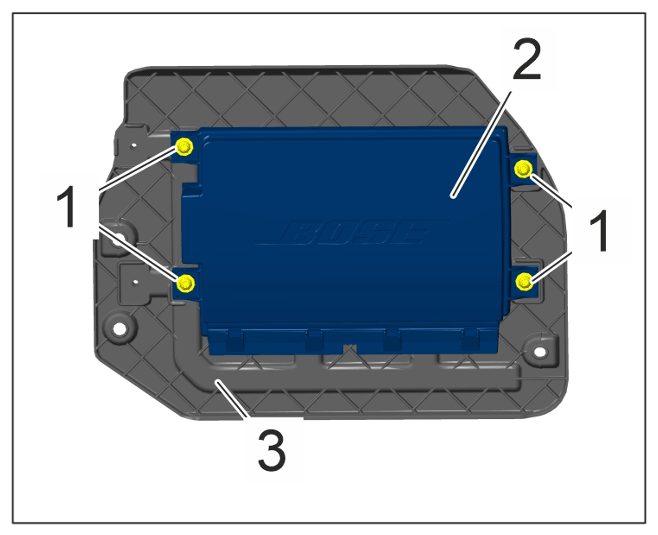

| Screws securing Bose loudspeaker booster to footrest |
Item 1 |
Tightening torque |
4 Nm (3 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Bose loudspeaker booster |
|
|
|
|
|
