Calibrating Reversing Camera Control Unit

NOTE: NOTIFICATION
Voltage drop

Irreparable damage to control unit
Damage to control unit
Fault entries in the control unit
Control unit programming/coding is aborted
Malfunctions in the control unit, even during programming/coding
→ Switch off ignition before disconnecting the control unit.

→ Make sure that the power supply is not interrupted during programming/coding.

→ Connect the battery charger with at least > current 90 A to the vehicle battery.

Information

The terms "Ignition on" and "Starting engine" are re-defined for fully electric vehicles (battery electric vehicles - BFV).

Establishing operational readiness/Ignition on:

Prerequisites for establishing operational readiness: High-voltage battery is sufficiently charged, remove vehicle charging cable from the vehicle charge port, put driver's key in the emergency start tray.

Establishing operational readiness automatically: Get into the vehicle and close the driver's door. The driver's key is recognized inside the vehicle. Operational readiness is established.

Establishing operational readiness manually: Press Start/Stop switch. The driver's key is recognized inside the vehicle. Operational readiness is established.

Establishing operational readiness/Starting engine:

Establish operational readiness and engage transmission range. The vehicle is now ready to drive and can be moved.

Ending operational readiness/Switching off ignition

Ending operational readiness automatically: Get out of the vehicle with the driver's key and close the driver door. The driver's key is no longer detected outside the vehicle. Operational readiness ends.

Ending operational readiness manually: Press Start/Stop switch until the instrument cluster is switched off.

Ending driving readiness/Stopping engine

Vehicle is stationary: Press the P button on the instrument cluster. The vehicle is parked.

Information

The instructions in the Tester take precedence, since the description may be different with later Tester releases.

The procedure described here has been structured in general terms. Different text or additional information may appear in the Tester .

Connect tester to the vehicle and start it. Establish operational readiness on the vehicle.

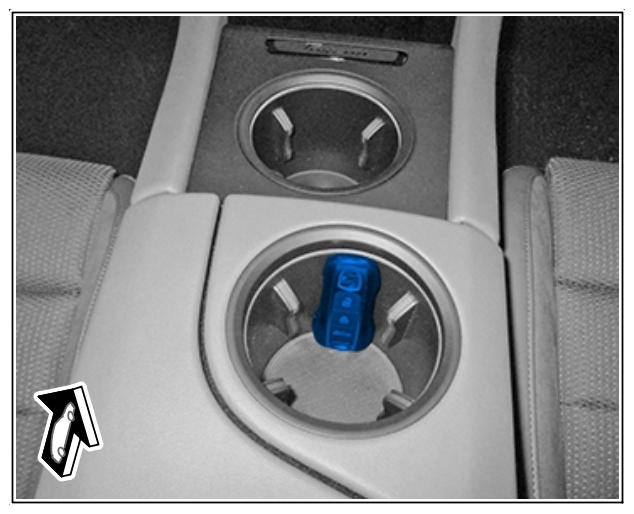

Place original remote control in emergency start tray.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Emergency start tray
Select the vehicle type if necessary.
In the Overview select the Chassis control (PASM) control unit. Press F12 to continue. Should a vehicle analysis protocol (VAL) be created? Press F11 to continue.
Select fault memory .
1. 5.1 Read out all fault memories and erase it if necessary.
In the Overview , select the reversing camera control unit. Press F12 to continue.
Select Coding Programming .
Select Automatic coding . Press F12 to continue.
1. 8.1 Tester displays message: Coding was completed successfully.
Select Maintenance/repairs .
Select Calibrating reversing camera control unit . Press F12 to continue.
1. 10.1 Read the warnings and instructions displayed on the Tester. Perform calibration according to menu guidance. Press F12 to continue.
2. 10.2 Tester displays message: Calibration was completed successfully.
Go back to the Overview .
In the Overview, press F7 to switch to the Additional menu .
Read out all fault memories , process and delete existing faults if necessary.
Exit the diagnostic application. End operational readiness on the vehicle. Disconnect tester from vehicle.
