Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Screws securing front loudspeaker to door pane.   Tightening torque 3 Nm (2.2 ftlb.)
G15566489Courtesy of PORSCHE CARS NORTH AMERICA, INC.

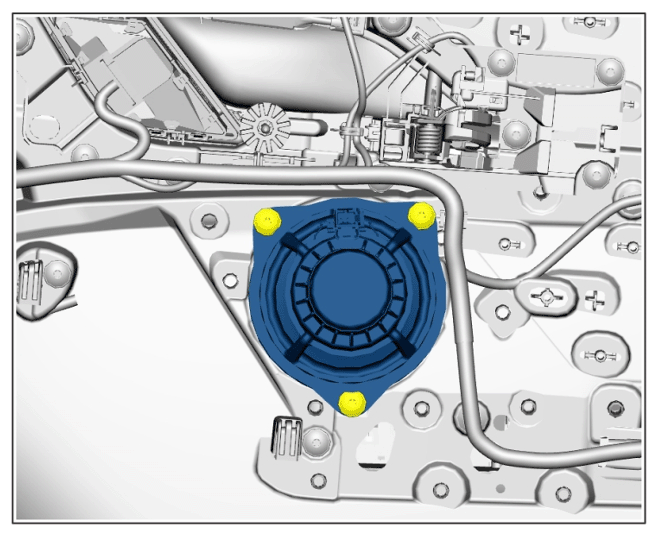

Screws for loudspeaker in front door panel
