Removing The Front Side Loudspeaker (In The Dashboard)

NOTE: NOTIFICATION
Voltage peaks
  • Risk of damage to electrical load or to the control unit

    → Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).

    → Switch off electrical loads before disconnecting or removing them.

  1. Remove front loudspeaker (in dashboard) at the side -3-  .
    1. 1.1  Unscrew screw -2-  .
    2. 1.2  Loosen screws -1-  .
    3. 1.3  Pull out the front loudspeaker (in the dashboard) at the side until the electric plug connection -3-  is accessible.
      G15566477Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Screws

  2. Release and disconnect electric plug connection -1-  from front loudspeaker (in the dashboard) to the side -2-  .

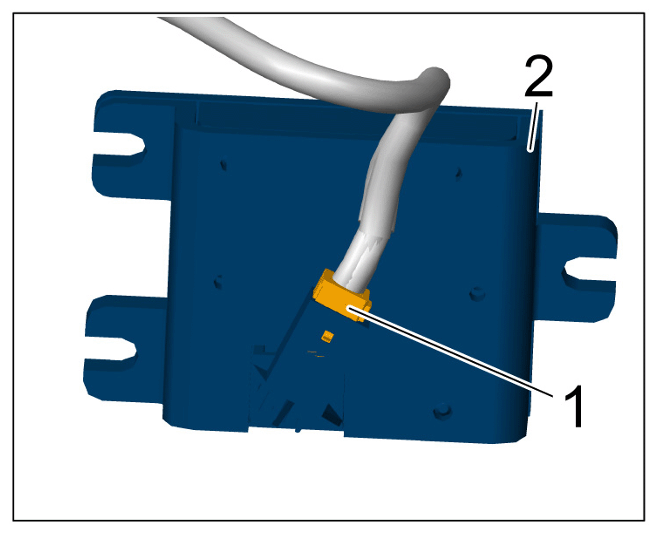

    G15566478Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

  3. Remove front loudspeaker (in dashboard) at the side.
