Removing BURMESTER Subwoofer

NOTE: NOTIFICATION
Voltage peaks

Risk of damage to electrical load or to the control unit
→ Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).

→ Switch off electrical loads before disconnecting or removing them.

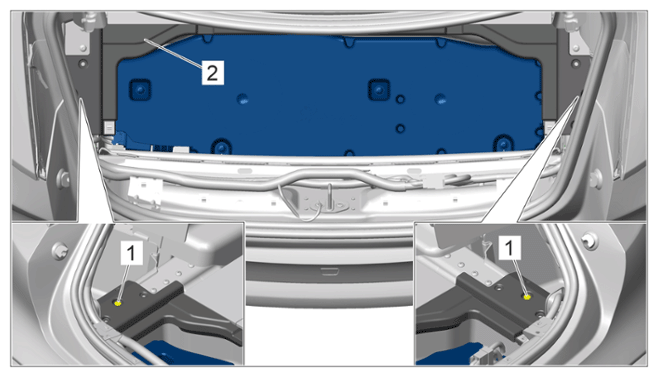

Unscrew screws -1- and remove retaining strip -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Retaining strip

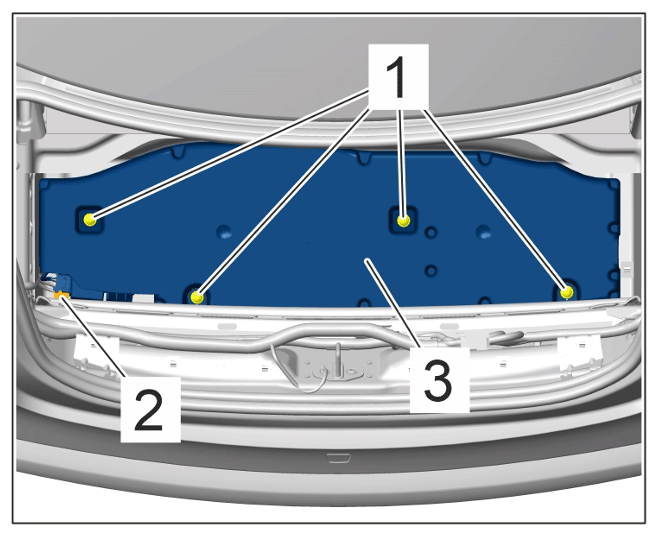

Loosen Burmester subwoofer -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Burmester subwoofer
1. 2.1 Unscrew and remove screws -1- .
2. 2.2 Swivel out Burmester subwoofer -3- until the electric plug connection -2- is accessible.
3. 2.3 Release and unplug electric plug connection -2- .
Remove Burmester subwoofer.
