Installing Display And Operator Control Unit On Rear Centre Console

  1. Install rear air-conditioning system regulator -1-  .
    1. 1.1  Position rear air-conditioning system regulator -1-  .
    2. 1.2  Connect and lock electric plug connections -3-  .
    3. 1.3  Push rear air-conditioning system regulator -1-  into clips -2-  until it engages securely.

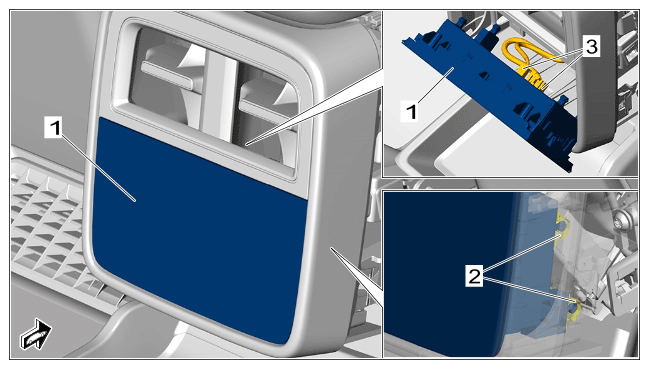

      G15566461Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Rear air-conditioning system regulator

  2. Move front seats back to their original position.
