Repairing Antenna Cable In The Central Computer PCM Control Unit Area

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

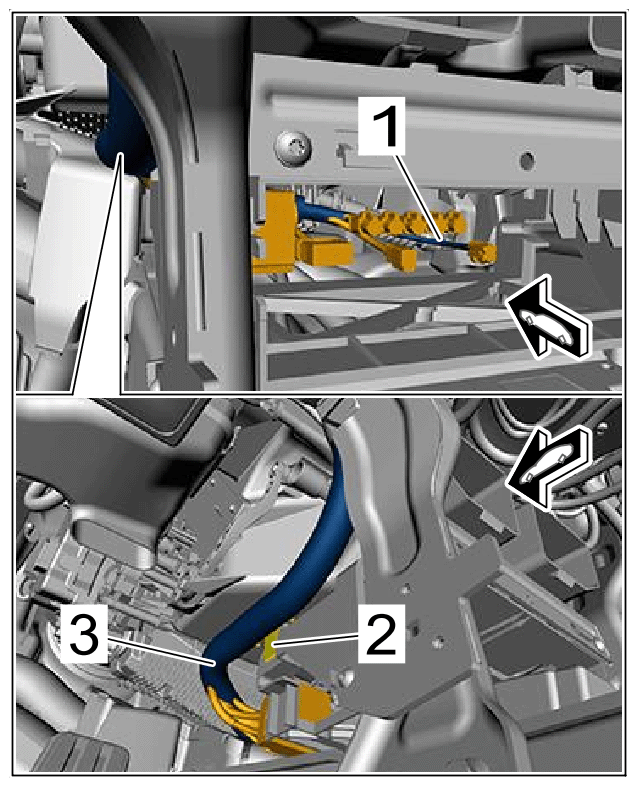

Antenna cable in the central computer PCM control unit area

1. 1.1  Unclip clip -2-  using a plastic spatula and place electric wire harness -3-  in the footwell on the side.
2. 1.2  Expose damaged area of the antenna cable -1-  from the electric wire harness -3-  .

Information

Antenna cable with a multi-pin electric plug connection -2-  cannot be repaired. A repair wire harness must be -1-  used for this.

The repair wire harness is routed up to the possible connection points for the affected antenna cables and repaired at the connection points.

Multi-pin connector -3-  must not be opened at plug lock -A-  . The connector is damaged when opened.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Repair wire harness for antenna cable

Information

The specified disconnection points are recommendations for a possible area that enables disconnection and repair.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

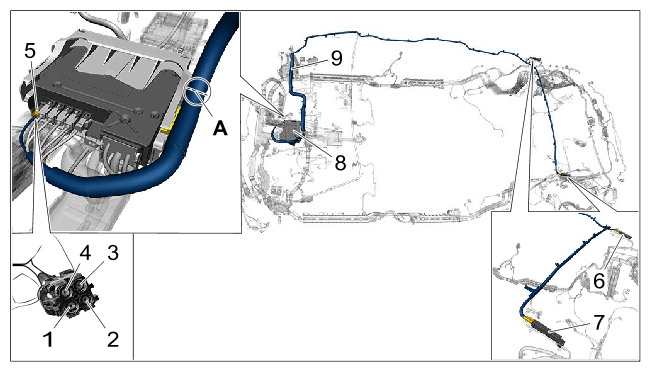

Connection points for antenna cable

1. 2.1  On the main wire harness -9-  , rewind the sleeve at the marked area -A-  .
2. 2.2  Determine the associated antenna cable by performing a continuity test via the shields, mark and disconnect antenna cables.
3. 2.3  Secure repair wire harness along the main wire harness and shorten it to the required lengths.

> 912841 REPAIRING ANTENNA CABLE
