Repairing Antenna Cable In The Driver Assistance Systems Control Unit Area (Rear Surround View Camera)

Remove loudspeaker booster -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loudspeaker booster holder
1. 1.1 Detach spring clamps -2- .
2. 1.2 Remove holder for loudspeaker booster -1- .

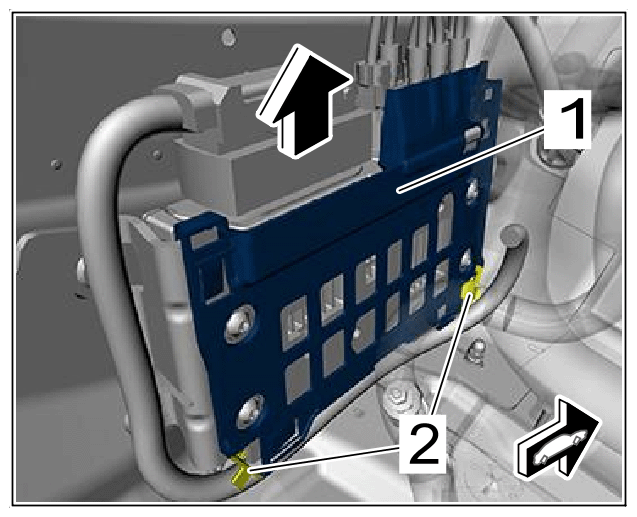

Unlock driver assistance systems control unit panel -1- on locking mechanism -2- and it off in -Arrow direction- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Driver assistance systems control unit panel

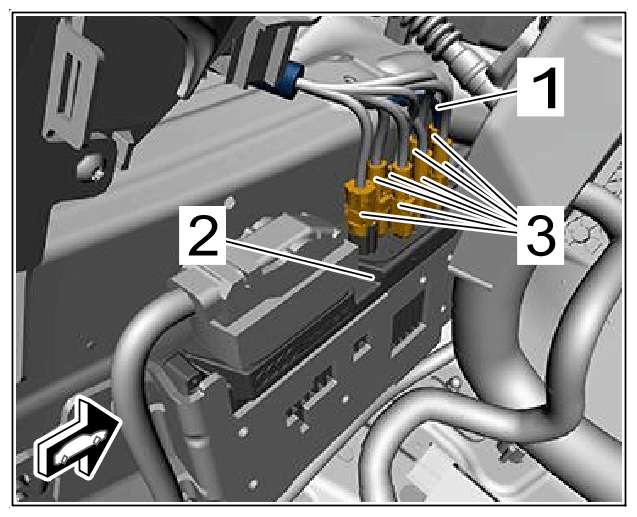

Detach antenna cable -1- in driver assistance systems control unit area -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Antenna cable in the driver assistance systems control unit area.
1. 3.1 unlock and pull off electric plug connections to driver assistance systems control unit -3- .
2. 3.2 Expose the damaged area of antenna cable -1- in the electrical wire harness.
Repair antenna cable.
> 912841 REPAIRING ANTENNA CABLE
Installation is performed in reverse order. Pay particular attention to the following:
1. 5.1 Push on the electric plug connections until you feel them lock.
