Repair Antenna Cable In The Area Of The Driver Assistance System Control Unit (Front Surround View Camera)

Remove loudspeaker booster -1- holder.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

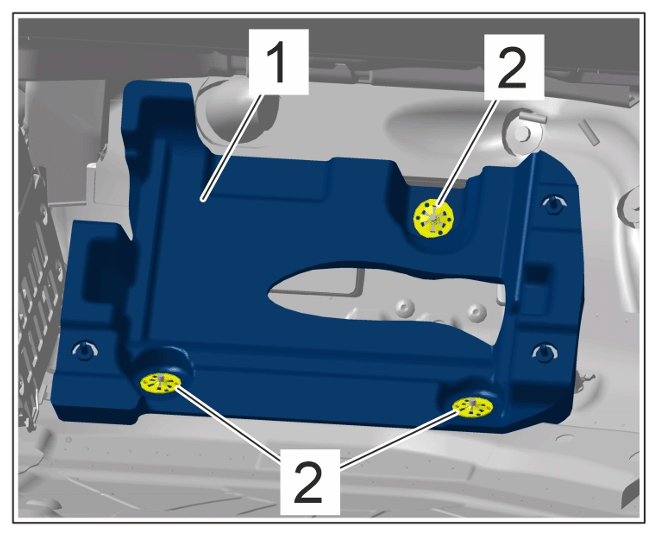

Loudspeaker booster holder
1. 1.1 Loosen spring clamps -2- .
2. 1.2 Loosen loudspeaker booster -1- holder.
-1- Release trim on driver assistance systems control unit -2- at the locking mechanism and pull it off in -Arrow direction- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

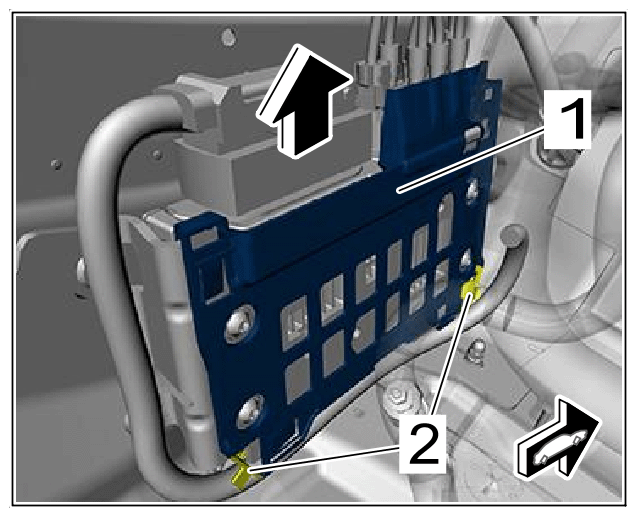

Driver assistance systems control unit

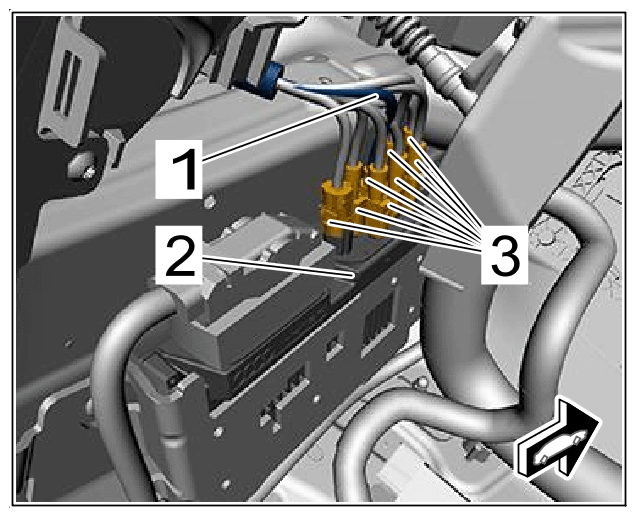

-1- Disconnect antenna cable in the driver assistance systems -2- control unit area.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Antenna cable in driver assistance system control unit area
1. 3.1 Release electric plug connections -3- and disconnect them.
2. 3.2 Expose damaged area of the antenna cable -1- from the electric wire harness.
Repair antenna cable.
> 912841 REPAIRING ANTENNA CABLE
Installation is performed in reverse order. Pay particular attention to the following:
1. 5.1 Connect electric plug connections until plugs lock perceptibly.
