Antenna Cable Topology (Mobile Phone Amplifier To Right Dashboard Connection Point)

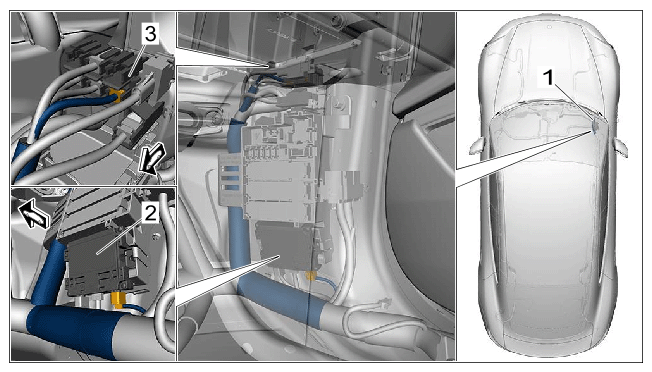

Fig 1: Antenna Cable (Mobile Phone Amplifier To Right Dashboard Connection Point) Components Location
G15566344Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Antenna cable (mobile phone amplifier to right dashboard connection point)

1  Antenna cable (mobile phone amplifier to right dashboard connection point)
2  Mobile phone amplifier
3  Right dashboard connection point
