Repairing Antenna Cable In The Front Camera Area

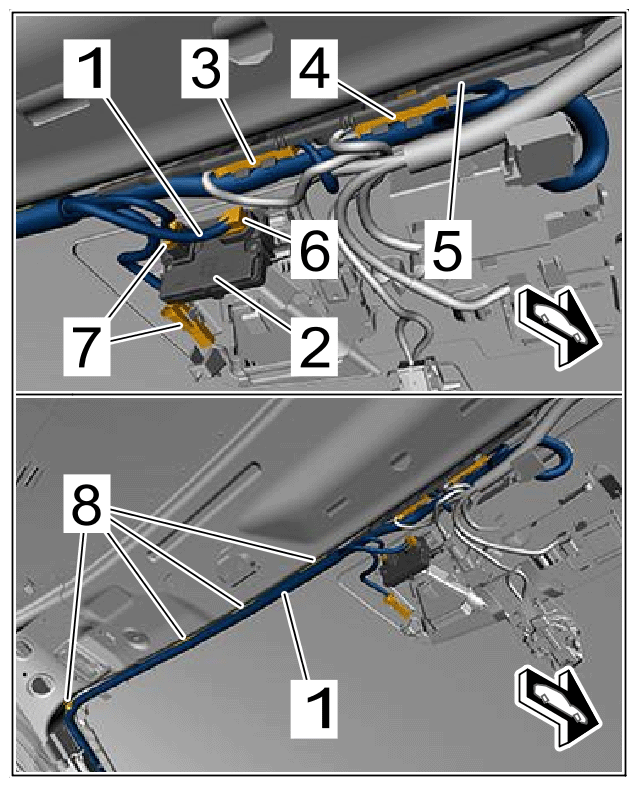

- Detach antenna cable -1-
in front camera area -2-
.
Antenna cable in front camera area
- 1.1 Unclip, unlock and pull off electric plug connections to electrical wire harness connection point at the left and right -3 and 4- from holder -5- .
- 1.2 Unlock and pull off electric plug connection to antenna cable front camera -6- .
- 1.3 Unlock and pull off electric plug connections -7- .
- 1.4 Unclip clips -8- with a plastic spatula.
- 1.5 Expose the damaged area of antenna cable -1- in the electrical wire harness.
- Repair antenna cable.
- Installation is performed in reverse order. Pay particular attention to the following:
- 3.1 Push on the electric plug connections until you feel them lock.
