Tools And Materials: Materials

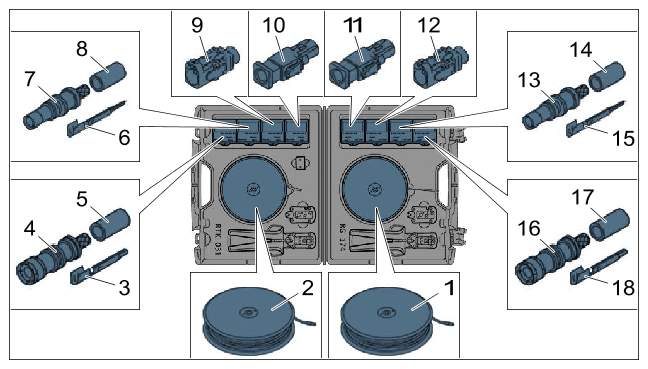

Material repair kit for antenna line
| 1 | Antenna cable on roller (antenna line system RG-147) |
| 2 | Antenna cable on roller (antenna line system RTK-031) |
| 3 | Inner contact on antenna socket connector (antenna line system RTK-031) |
| 4 | Outer contact of antenna socket connector (antenna line system RTK-031) |
| 5 | Sleeve on antenna socket connector (antenna line system RTK-031) |
| 6 | Inner contact on antenna pin connector (antenna line system RTK-031) |
| 7 | Outer contact of antenna pin connector (antenna line system RTK-031) |
| 8 | Antenna pin connector sleeve (antenna line system RTK-031) |
| 9 | Connector housing for antenna socket connector (antenna line system RTK-031) |
| 10 | Connector housing for antenna pin connector (antenna line system RTK-03 1) |
| 11 | Connector housing for antenna pin connector (antenna line system RG-147) |
| 12 | Connector housing for antenna socket connector (antenna line system RG-147) |
| 13 | Outer contact of antenna pin connector (antenna line system RG-147) |
| 14 | Antenna pin connector sleeve (antenna line system RG-147) |
| 15 | Inner contact on antenna pin connector (antenna line system RG-147) |
| 16 | Outer contact of antenna socket connector (antenna line system RG-147) |
| 17 | Sleeve on antenna socket connector (antenna line system RG-147) |
| 18 | Inner contact on antenna socket connector (antenna line system RG-147) |
