Determining Antenna Cable Sub-Sections

  1. Antenna cable (front camera to driver assistance systems control unit)

    > 91284106 REPAIRING ANTENNA CABLE (FRONT CAMERA TO DRIVER ASSISTANCE SYSTEMS CONTROL UNIT)

    G15566432Courtesy of PORSCHE CARS NORTH AMERICA, INC.

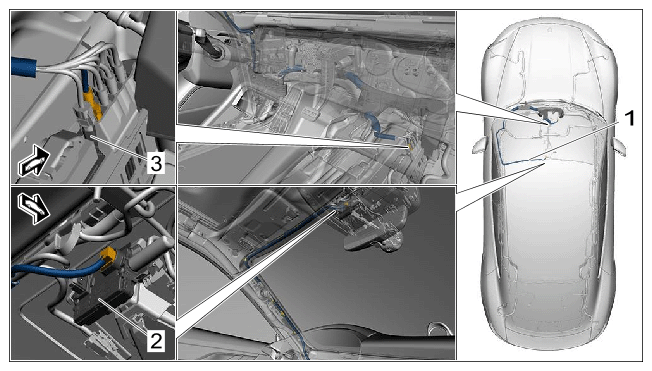

    Antenna cable for front camera for driver assistance systems

    1  Antenna cable (front camera to driver assistance systems control unit)
    2  Front camera
    3  Control unit for assistance systems
  2. Antenna able (LTE antenna 2 to telepioie control unit) (Limousine):

    > 91284107 REPAIRING ANTENNA CABLE (LTE ANTENNA 2 TO TELEPHONE CONTROL UNIT)

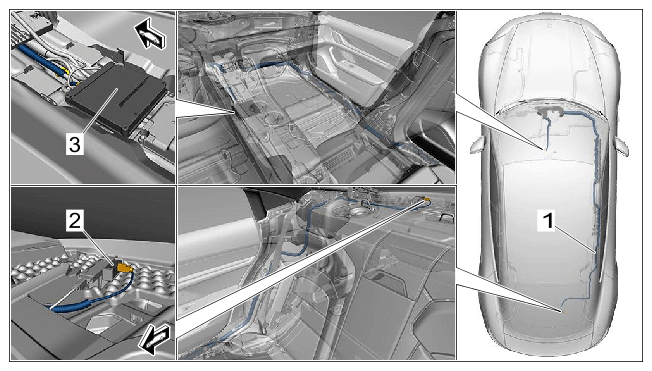

    G15566433Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Antenna cable (LTE antenna 2 to telephone control unit) (Limousine)

    1  Antenna cable (LTE antenna 2 to telephone control unit)
    2  LTE antenna 2 (rear shelf)
    3  Telephone control unit
  3. Antenna cable (LTE antenna 2 to telephone control unit) (Sport Turismo and CUV):

    > Refer to the appropriate service information.

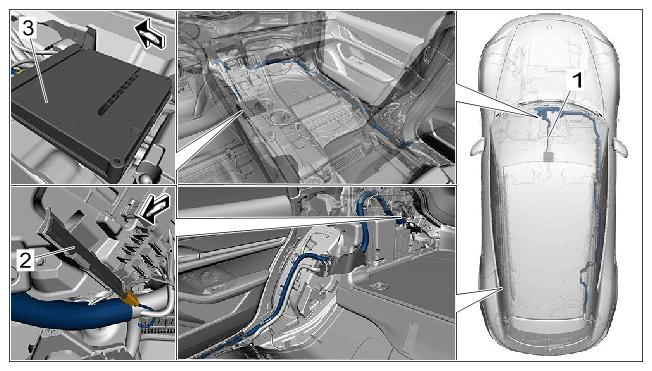

    G15566434Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Antenna cable (LTE antenna 2 to telephone control unit) (Sport Turismo and CUV)

    1  Antenna cable (LTE antenna 2 to telephone control unit)
    2  LTE antenna 2
    3  Telephone control unit
  4. Antenna cable (LTE antenna 4 on tailgate to telephone control unit) (Limousine):

    > 91284109 REPAIRING ANTENNA CABLE (LTE ANTENNA 4 ON TAILGATE TO TELEPHONE CONTROL UNIT)

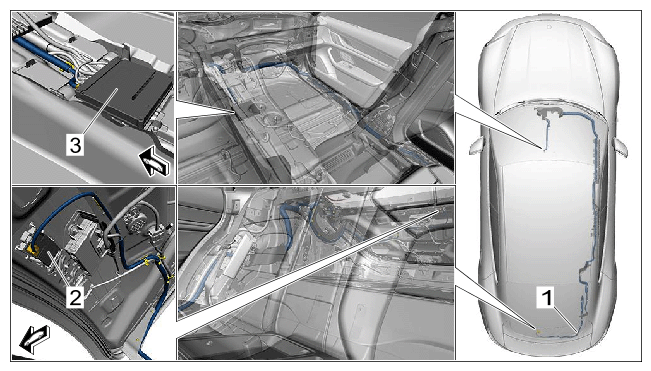

    G15566435Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Antenna cable (LTE antenna 4 on tailgate to telephone control unit)

    1  Antenna cable (LTE antenna 4 on tailgate to telephone control unit)
    2  LTE antenna 4 (tailgate)
    3  Telephone control unit
  5. Antenna cable (LTE antenna 4 side panel to telephone control unit) (Sport Turismo and CUV):

    > Refer to the appropriate service information.

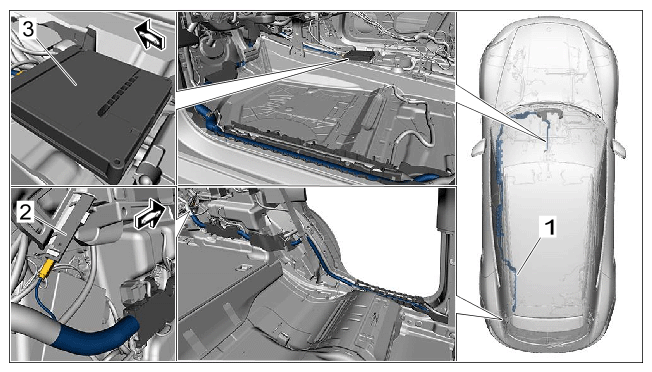

    G15566436Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Antenna cable (LTE antenna 4 side panel to telephone control unit) (Sport Turismo and CUV)

    1  Antenna cable (LTE antenna 4 side panel to telephone control unit)
    2  LTE antenna 4 (side panel)
    3  Telephone control unit
  6. Antenna cable (connection point on dashboard, right (mirror base LTE) to telephone control unit):

    > 91284111 REPAIR ANTENNA CABLE (CONNECTION POINT IN DASHBOARD, RIGHT (MIRROR BASE LTE) TO TELEPHONE CONTROL UNIT)

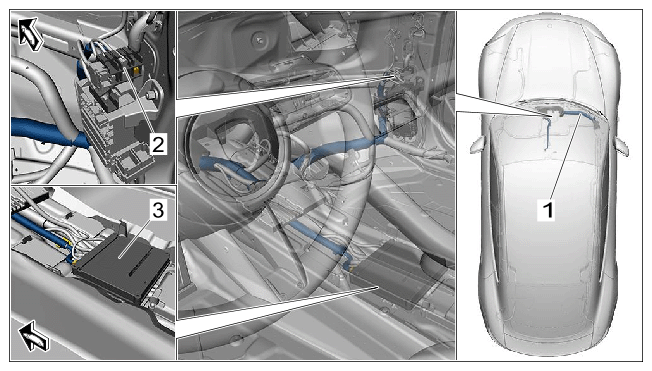

    G15566437Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Antenna cable (connection point in dashboard, right (mirror base LTE) to telephone control unit)

    1  Antenna cable (connection point in dashboard, right (mirror base LTE) to telephone control unit)
    2  Connection point for dashboard, right (mirror base LTE)
    3  Telephone control unit
  7. Antenna cable (connection point in front left bumper (LTE antenna 1) to telephone control unit):

    > 91284112 REPAIRING ANTENNA CABLE (CONNECTION POINT IN FRONT LEFT BUMPER (LTE ANTENNA 1) TO TELEPHONE CONTROL UNIT)

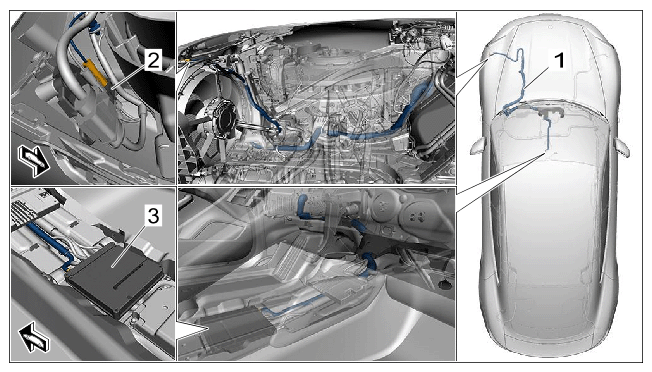

    G15566438Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Antenna cable (connection point in front left bumper (LTE antenna 1) to telephone control unit)

    1  Antenna cable (connection point in front left bumper (LTE antenna 1) to telephone control unit)
    2  Connection point for front left bumper
    3  Telephone control unit
  8. Antenna cable (connection point in dashboard, right (mirror base WLAN) to telephone control unit):

    > 91284113 REPAIRING ANTENNA CABLE (CONNECTION POINT ON BUMPER, RIGHT (MIRROR BASE WLAN) FOR TELEPHONE CONTROL UNIT)

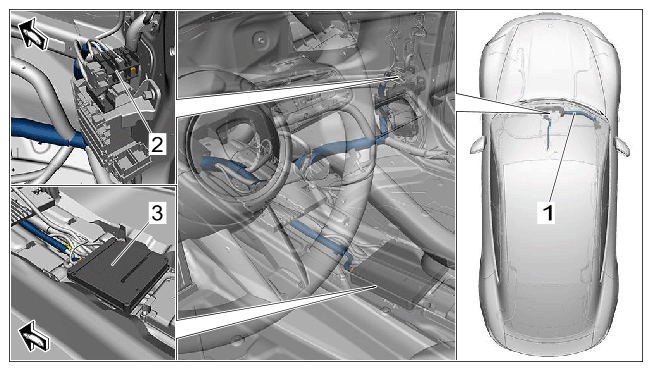

    G15566439Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Antenna cable (connection point in dashboard, right (mirror base WLAN) to telephone control unit)

    1  Antenna cable (connection point in dashboard, right (mirror base WLAN) to telephone control unit)
    2  Connection point for dashboard, right (mirror base WLAN)
    3  Telephone control unit
  9. Antenna cable (antenna 2 for Internet access (WLAN rear shelf) to telephone control unit):

    > 91284114 REPAIRING ANTENNA CABLE (ANTENNA 2 FOR INTERNET ACCESS (WLAN REAR SHELF) TO TELEPHONE CONTROL UNIT)

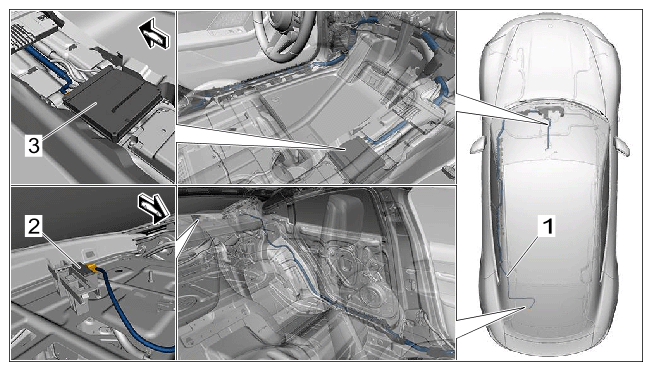

    G15566440Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Antenna cable (antenna 2 for Internet access (WLAN rear shelf) to telephone control unit)

    1  Antenna cable (antenna 2 for Internet access (WLAN rear shelf) to telephone control unit)
    2  WLAN rear shelf
    3  Telephone control unit
  10. Antenna cable (VCL antenna at right tailgate connection point to vehicle e. sys. ctrl. unit 2) (Sport Turismo and CUV):

    > Refer to the appropriate service information.

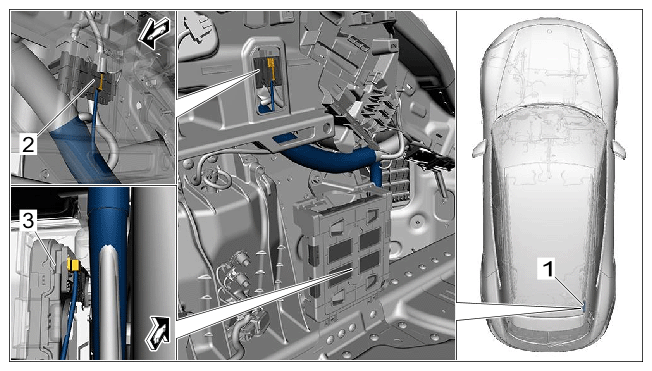

    G15566441Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Antenna cable (VCL antenna at right tailgate connection point to vehicle e. sys.. ctrl unit 2) (Sport Turismo and CUV)

    1  Antenna cable (VCL antenna right tailgate connection point to vehicle e. sys. ctrl unit 2)
    2  Connection point for tailgate, right
    3  Vehicle e. sys. ctrl unit 2
  11. Antenna cable (SDARS antenna (tailgate) to connection point on dashboard, right):

    > 91284116 REPAIRING ANTENNA CABLE (SDARS ANTENNA (TAILGATE) TO CONNECTION POINT ON DASHBOARD, RIGHT)

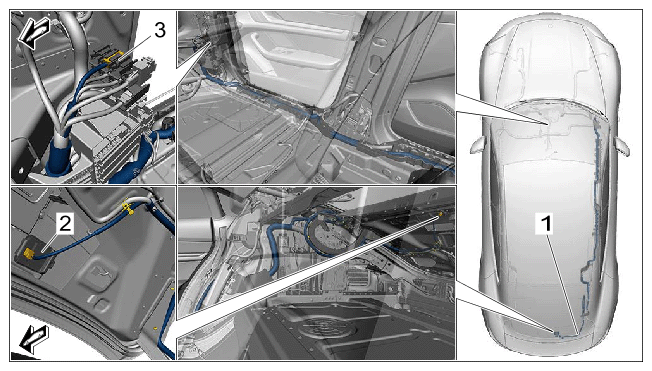

    G15566442Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Antenna cable (SDARS antenna (tailgate) to connection point on dashboard, right)

    1  Antenna cable (SDARS antenna (tailgate) to connection point on dashboard, right)
    2  SDARS antenna
    3  Connection point on dashboard, right
  12. Antenna cable (antenna for parking (rear bumper) to control unit for radio-controlled parking):

    > 91284117 REPAIRING ANTENNA CABLE (PARKING ANTENNA (REAR BUMPER) TO CONTROL UNIT FOR RADIO-CONTROLLED PARKING)

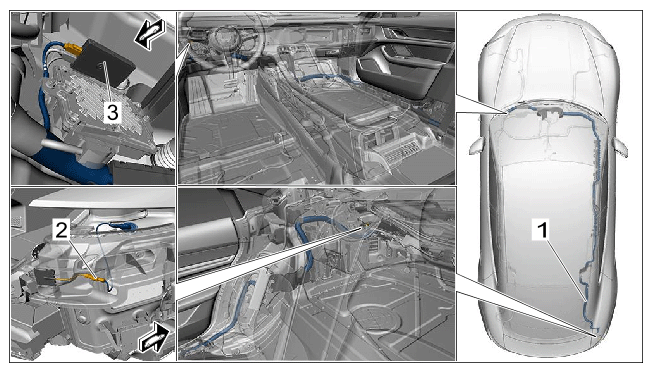

    G15566443Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Antenna cable (antenna for parking (rear bumper) to control unit for radio-controlled parking)

    1  Antenna cable (antenna for parking (rear bumper) to control unit for radio-controlled parking)
    2  Parking antenna (rear bumper)
    3  Control unit for radio-controlled remote parking
  13. Antenna cable (parking antenna (front bumper) to radio-controlled parking control unit):

    > 91284118 REPAIRING ANTENNA CABLE (PARKING ANTENNA (FRONT BUMPER) TO CONTROL UNIT FOR RADIO-CONTROLLED PARKING)

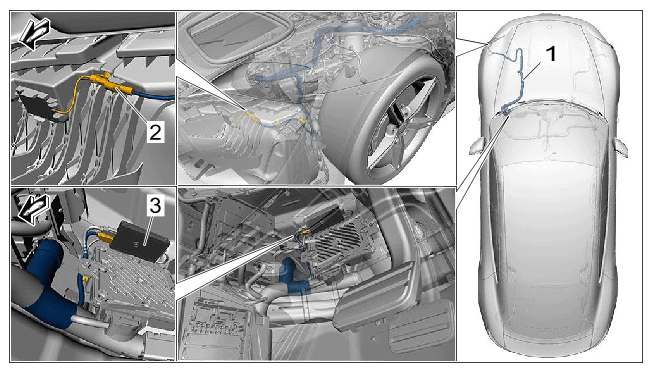

    G15566444Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Antenna cable (parking antenna (front bumper) to control unit for radio-controlled parking)

    1  Antenna cable (parking antenna (front bumper) to control unit for radio-controlled parking)
    2  Parking antenna (front bumper)
    3  Control unit for radio-controlled remote parking
  14. Antenna cable (connection point in dashboard, left to connection point in rear bumper, left (reversing camera control unit)):

    > 91284119 REPAIRING ANTENNA CABLE (CONNECTION POINT IN DASHBOARD, LEFT TO CONNECTION POINT IN REAR BUMPER, LEFT (REVERSING CAMERA CONTROL UNIT))

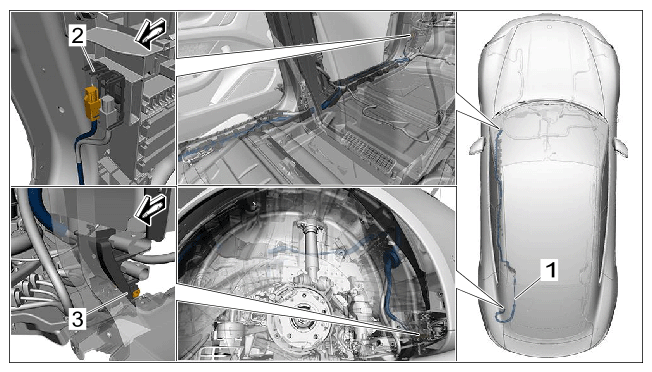

    G15566445Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Antenna cable (connection point on dashboard at the left to connection point on rear bumper, left (reversing camera control unit)).

    1  Antenna cable (connection point on dashboard at the left to connection point on rear bumper, left (reversing camera control unit)).
    2  Connection point for dashboard, left
    3  Rear bumper connection point, left
  15. Antenna cable (car telephone amplifier to connection point on front bumper):

    Refer to the appropriate service information.

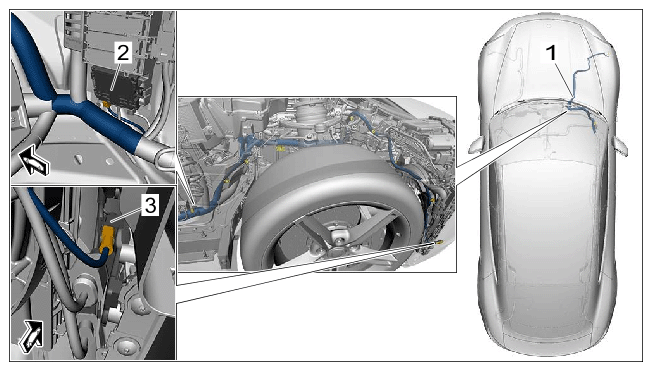

    G15566446Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Antenna cable (car telephone amplifier to connection point on front bumper)

    1  Antenna cable (car telephone amplifier to connection point on front bumper)
    2  Car telephone amplifier
    3  Front bumper connection point
  16. Antenna cable (car telephone amplifier to connection point on dashboard, right):

    > 91284121 REPAIRING ANTENNA CABLE (CAR TELEPHONE AMPLIFIER TO CONNECTION POINT ON DASHBOARD, RIGHT)

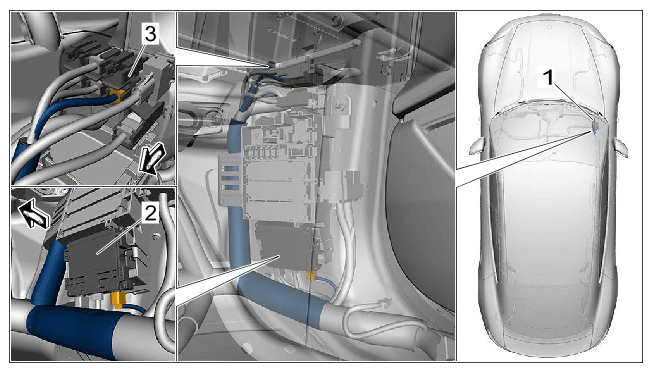

    G15566447Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Antenna cable (car telephone amplifier to connection point on dashboard, right)

    1  Antenna cable (car telephone amplifier to connection point on dashboard, right)
    2  Car telephone amplifier
    3  Connection point on dashboard, right
  17. Antenna cable (driver assistance system control unit to front bumper connection point (front Surround View camera)):

    > 91284122 REPAIRING ANTENNA CABLE (DRIVER ASSISTANCE SYSTEM CONTROL UNIT TO FRONT BUMPER CONNECTION POINT (FRONT SURROUND VIEW CAMERA))

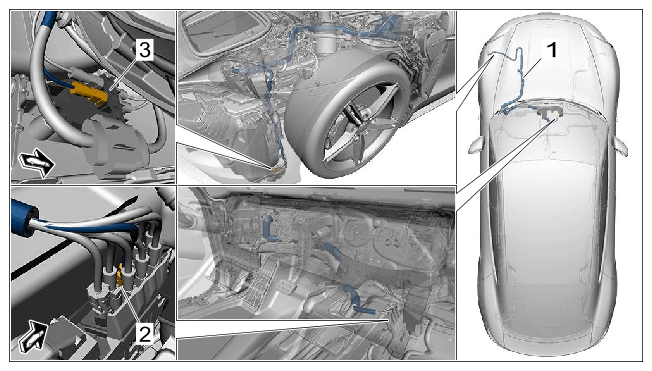

    G15566448Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Antenna cable (driver assistance system control unit to front bumper connection point (front Surround View camera))

    1  Antenna cable (driver assistance system control unit to front bumper connection point (front Surround View camera))
    2  Control unit for driver assistance system
    3  Front bumper connection point
  18. Antenna cable (driver assistance systems control unit to rear bumper connection point (rear Surround View camera)):

    > 91284123 REPAIRING ANTENNA CABLE (DRIVER ASSISTANCE SYSTEMS CONTROL UNIT TO REAR BUMPER CONNECTION POINT (REAR SURROUND VIEW CAMERA))

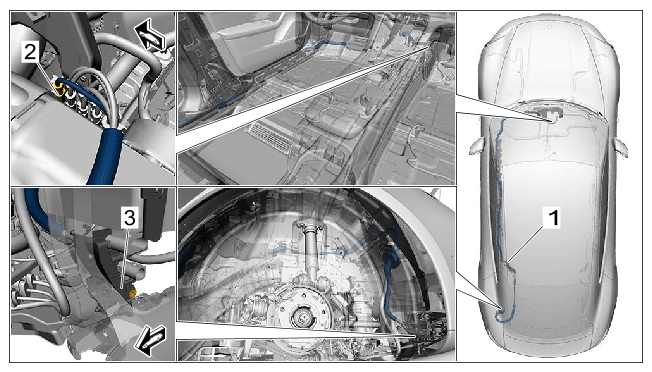

    G15566449Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Antenna cable (driver assistance systems control unit to rear bumper connection point (rear Surround View camera))

    1  Antenna cable (driver assistance system control unit to rear bumper connection point (rear Surround View camera))
    2  Control unit for driver assistance system
    3  Rear bumper connection point
  19. Antenna cable (connection point in roof, right to central computer PCM control unit (AM/FM/DB2)) (Sport Turismo and CUV):

    > Refer to the appropriate service information.

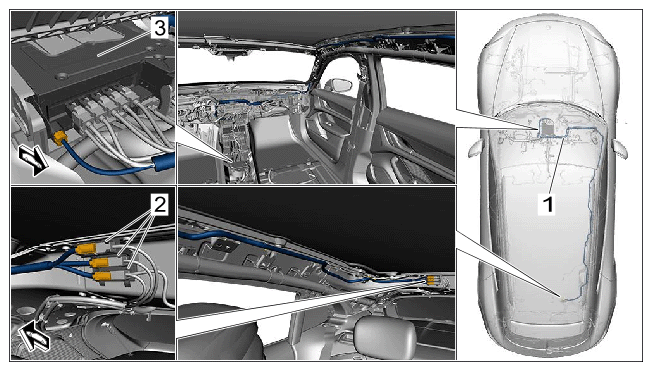

    G15566450Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Antenna cable (connection point in roof at the right to central computer PCM control unit (AM/FM/DB2)) (Sport Turismo and CUV)

    1  Antenna cable (connection point in roof, right to central computer PCM control unit (AM/FM/DB2))
    2  Connection point for roof, right
    3  Central computer PCM control unit
  20. Antenna cable (GPS antenna (mirror base) to telephone control unit):

    > 91284125 REPAIRING ANTENNA CABLE (CONNECTION POINT FOR GPS ANTENNA (MIRROR BASE) FOR TELEPHONE CONTROL UNIT)

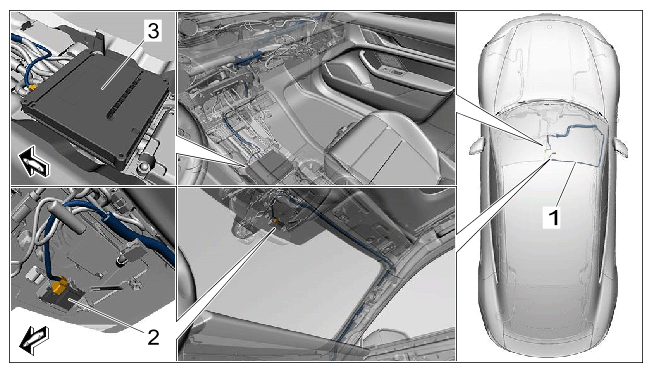

    G15566451Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Antenna cable (GPS antenna (mirror base) to telephone control unit)

    1  Antenna cable (GPS antenna (mirror base) to telephone control unit)
    2  GPS antenna (mirror base)
    3  Telephone control unit
  21. Antenna cable (WiFi antenna (mirror base) to connection point on dashboard, right):

    > 91284126 REPAIRING ANTENNA CABLE (WLAN ANTENNA (MIRROR BASE) TO CONNECTION POINT ON DASHBOARD, RIGHT)

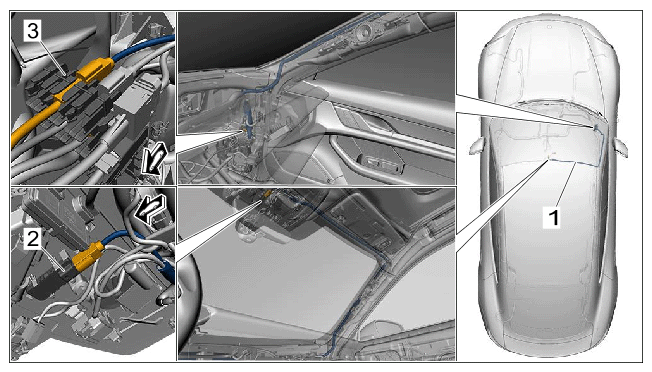

    G15566452Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Antenna cable (WLAN antenna (mirror base) to connection point on dashboard, right)

    1  Antenna cable (WLAN antenna (mirror base) to connection point on dashboard, right)
    2  WLAN antenna (mirror base)
    3  Connection point on dashboard, right
  22. Antenna cable (central computer PCM control unit to left dashboard connection point (reversing camera control unit)):

    > 91284127 REPAIRING ANTENNA CABLE (CENTRAL COMPUTER PCM CONTROL UNIT TO CONNECTION POINT ON DASHBOARD, LEFT (REVERSING CAMERA CONTROL UNIT))

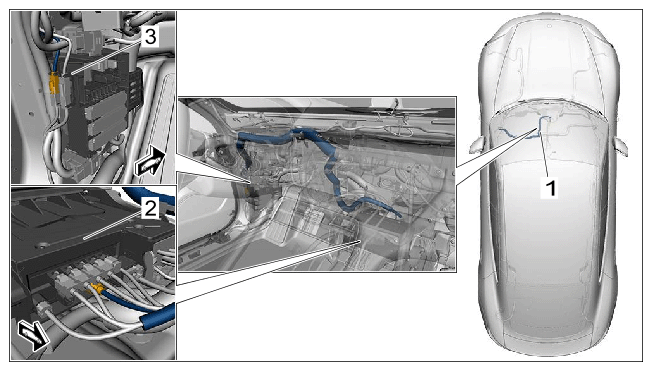

    G15566453Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Antenna cable (central computer PCM control unit to left dashboard connection point (reversing camera control unit))

    1  Antenna cable (central computer PCM control unit to left dashboard connection point (reversing camera control unit))
    2  Central computer PCM control unit
    3  Connection point for dashboard, left
  23. Antenna cable (connection point on right of dashboard (LTE antenna) to connection point on dashboard, center):

    > 91284128 REPAIRING ANTENNA CABLE (CONNECTION POINT IN DASHBOARD AT THE RIGHT (LTE ANTENNA) TO TERMINAL OF DASHBOARD, CENTRE)

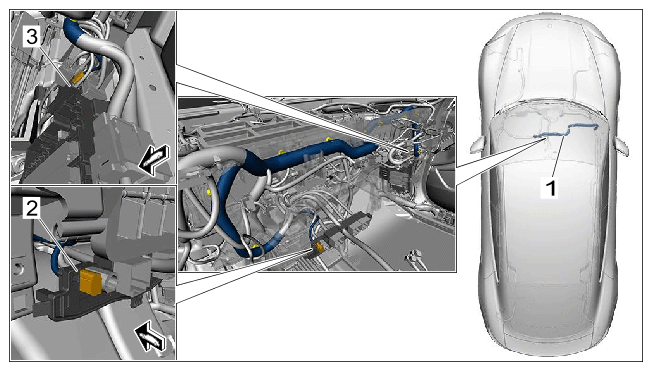

    G15566454Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Antenna cable (connection point on right of dashboard (LTE antenna) to connection point on dashboard, center)

    1  Antenna cable (connection point on right of dashboard (LTE antenna) to connection point on dashboard, center)
    2  Connection point on dashboard, right
    3  Connection point dashboard, center
  24. Antenna cable (connection point in dashboard, left (antenna toll) to toll card reader control unit) (Japan):

    > 91284129 REPAIRING ANTENNA CABLE (CONNECTION POINT IN DASHBOARD AT THE LEFT (ANTENNA TOLL) FOR TOLL CARD READER CONTROL UNIT)

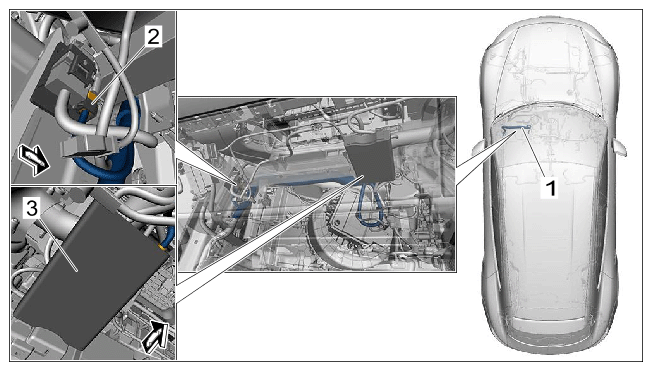

    G15566455Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Antenna cable (connection point in dashboard, left (antenna toll) to toll card reader control unit)

    1  Antenna cable (connection point in dashboard, left (antenna toll) to toll card reader control unit)
    2  Connection point for dashboard, left
    3  Toll card reader control unit
  25. Antenna cable (left antenna amplifier (digital radio) to central computer PCM control unit):

    > 91284130 REPAIRING ANTENNA CABLE (LEFT ANTENNA AMPLIFIER (DIGITAL RADIO) TO CENTRAL COMPUTER PCM CONTROL UNIT)

    G15566456Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Antenna cable (left antenna amplifier (digital radio) to central computer PCM control unit)

    1  Antenna cable (left antenna amplifier (digital radio) to central computer PCM control unit)
    2  Antenna amplifier, left
    3  Central computer PCM control unit
  26. Antenna cable (right antenna amplifier (rear window antenna) to central computer PCM control unit):

    > 91284131 REPAIRING ANTENNA CABLE (RIGHT ANTENNA AMPLIFIER (REAR WINDOW ANTENNA) TO CENTRAL COMPUTER PCM CONTROL UNIT)

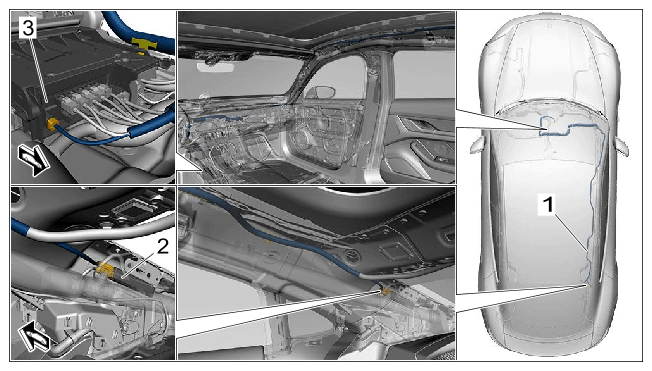

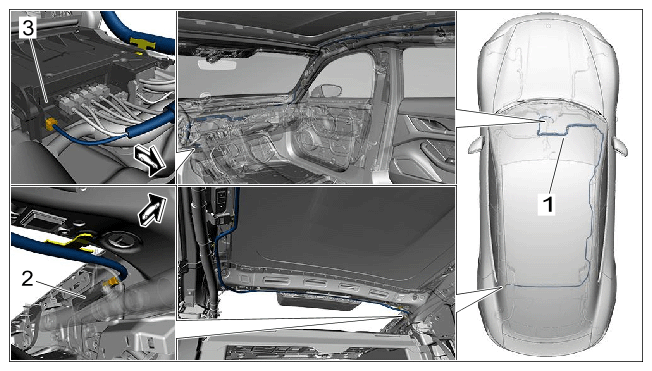

    G15566457Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Antenna cable (right antenna amplifier (rear window antenna) to central computer PCM control unit)

    1  Antenna cable (right antenna amplifier (rear window antenna) to central computer PCM control unit)
    2  Antenna amplifier, right (rear window antenna)
    3  Central computer PCM control unit
  27. Antenna cable (left antenna amplifier (rear window antenna) to central computer PCM control unit):

    > 91284132 REPAIRING ANTENNA CABLE (LEFT ANTENNA AMPLIFIER (REAR WINDOW ANTENNA) TO CENTRAL COMPUTER PCM CONTROL UNIT)

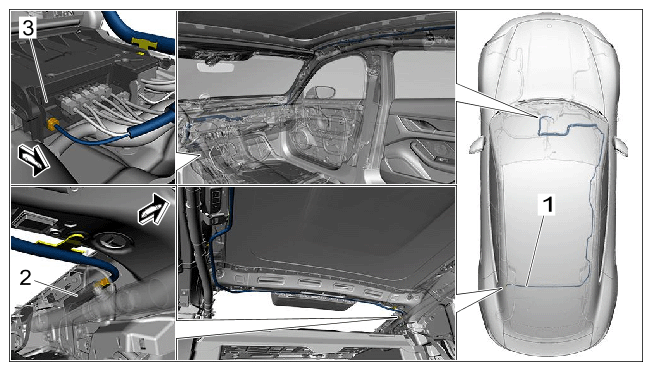

    G15566458Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Antenna cable (left antenna amplifier (rear window antenna) to central computer PCM control unit)

    1  Antenna cable (left antenna amplifier (rear window antenna) to central computer PCM control unit)
    2  Antenna amplifier, left (rear window antenna)
    3  Central computer PCM control unit
