Antenna Cable Connection Points

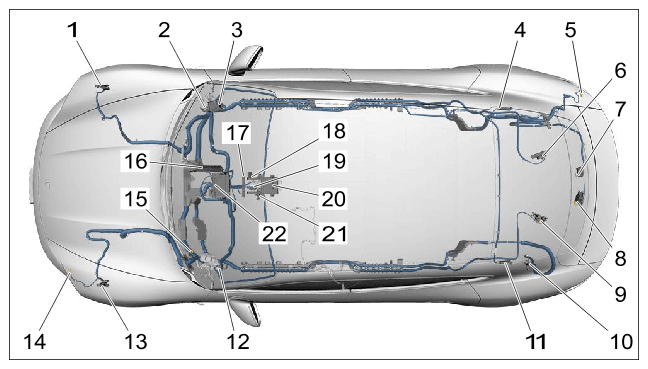

Antenna cable connection points
| 1 | Right front bumper connection point |
| 2 | Right dashboard connection point |
| 3 | Car telephone amplifier |
| 4 | Right rear window antenna |
| 5 | Antenna 4 for radio-controlled parking (rear) |
| 6 | LTE antenna 2 |
| 7 | SOARS antenna |
| 8 | LTE antenna 4 |
| 9 | Internet access antenna 2 (rear shelf) |
| 10 | Rear bumper connection point |
| 11 | Left rear window antenna/digital radio antenna |
| 12 | Left dashboard connection point |
| 13 | Left front bumper connection point |
| 14 | Antenna 3 for radio-controlled parking (front) |
| 15 | Remote parking control unit |
| 16 | Drive assistance systems control unit |
| 17 | Centre dashboard connection point |
| 18 | GPS antenna |
| 19 | Internet access antenna |
| 20 | Telephone control unit |
| 21 | Driver assistance systems front camera |
| 22 | Central computer (PCM) control unit |
