Installation Position

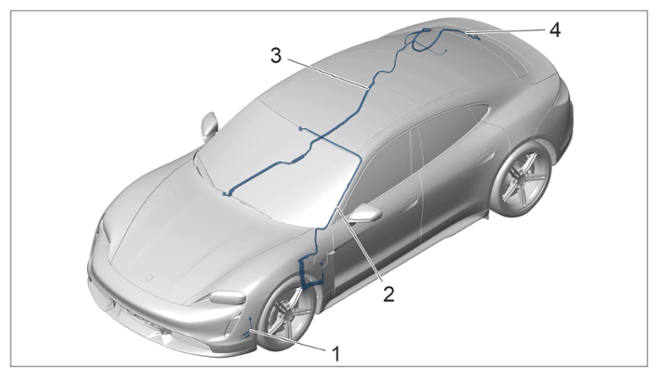

Fig 1: Antenna Cable Components Location
G15566258Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position

1  Antenna cable for mobile communication antenna on body front section
2  Antenna cable for mobile communication antenna on roof
3  Antenna cable for mobile communication antenna on rear shelf
4  Antenna cable for mobile communication antenna on rear lid
