Technical Values
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

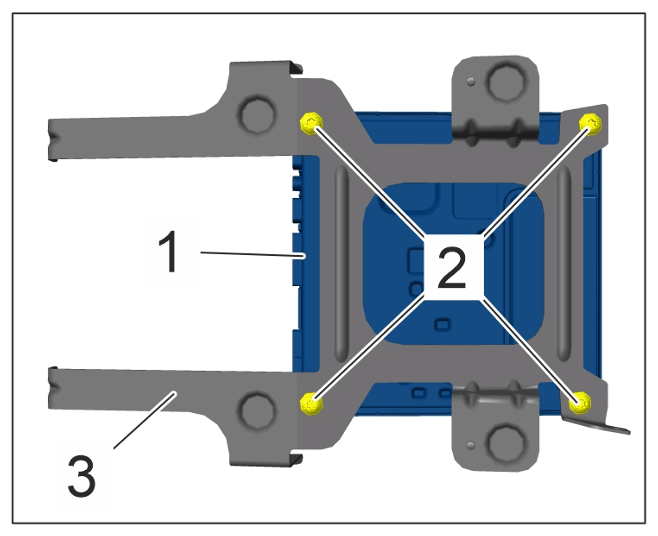

| Screws securing holder for control unit for external communication (connection box) to body | Item 2 | Tightening torque | 8 Nm (6 ftlb.) | ||
|
Control unit for external communication (connection box) |
|||||

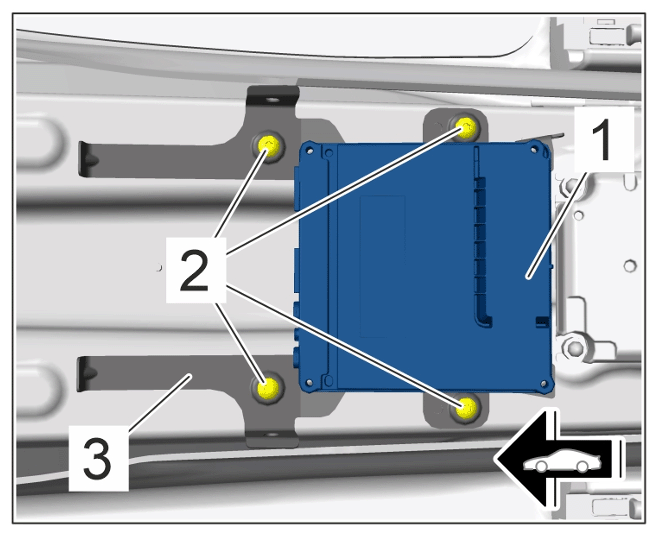

| Screws securing control unit for external communication (connection box) to holder | Tightening torque | 4 Nm (3 ftlb.) | |||
|
Screws |
|||||
| external current supply | charging device | current | 90 A |
