Removing Battery On Control Unit For External Communication

  1. Unclip battery tray on control unit for external communication.
    1. 1.1  Unclip left locking lug -1-  on battery tray.
    2. 1.2  Unclip right locking lug -2-  on battery tray.

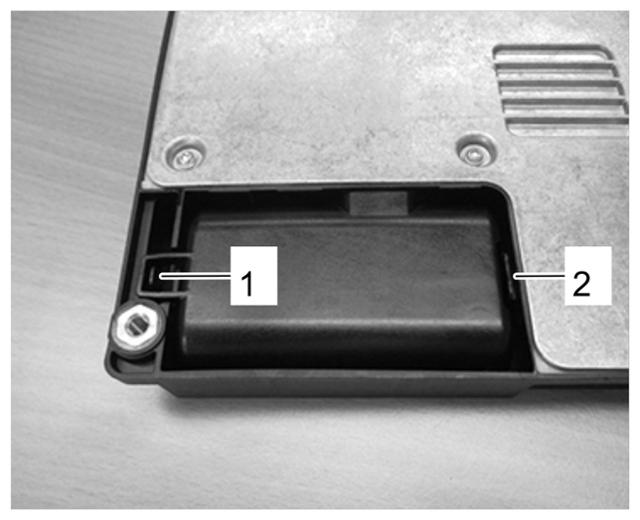

      G15566246Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Battery tray

  2. Remove battery with tray.

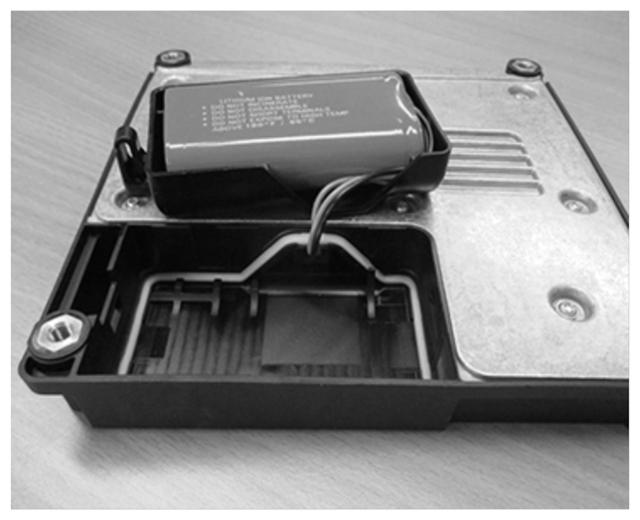

    G15566247Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Battery with tray

  3. Remove battery from tray.
  4. Unplug electric plug connection and remove battery.

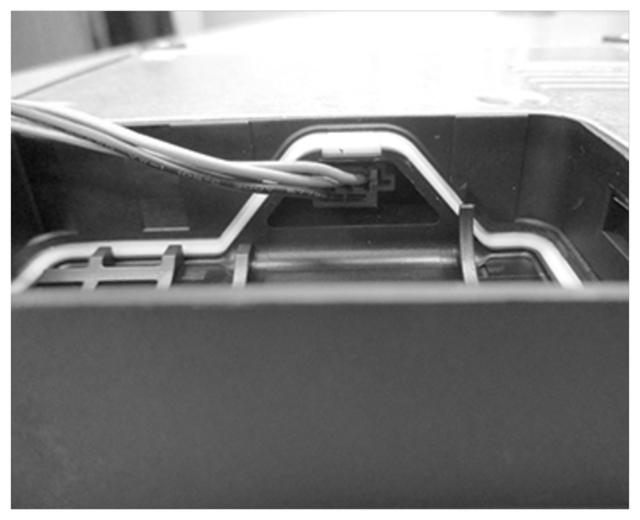

    G15566248Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection
