Removing GPS Antenna

NOTE: NOTIFICATION
Voltage peaks

Risk of damage to electrical load or to the control unit
→ Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).

→ Switch off electrical loads before disconnecting or removing them.

Release and disconnect electric plug connection for GPS antenna -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

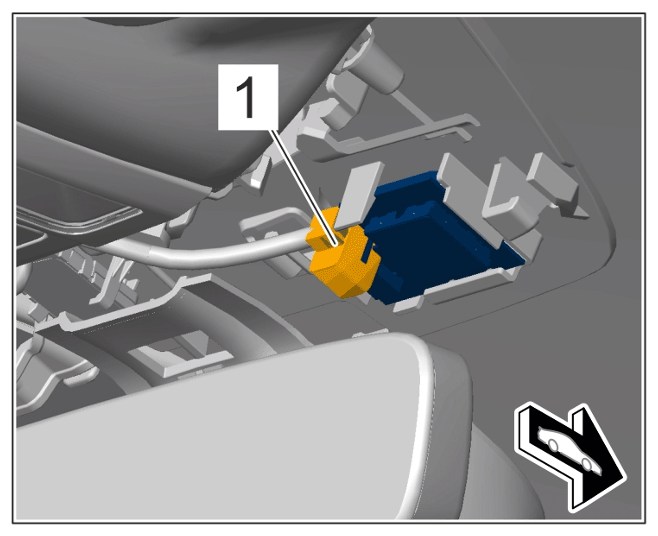

Electric plug connection for GPS antenna
Disconnect GPS antenna -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

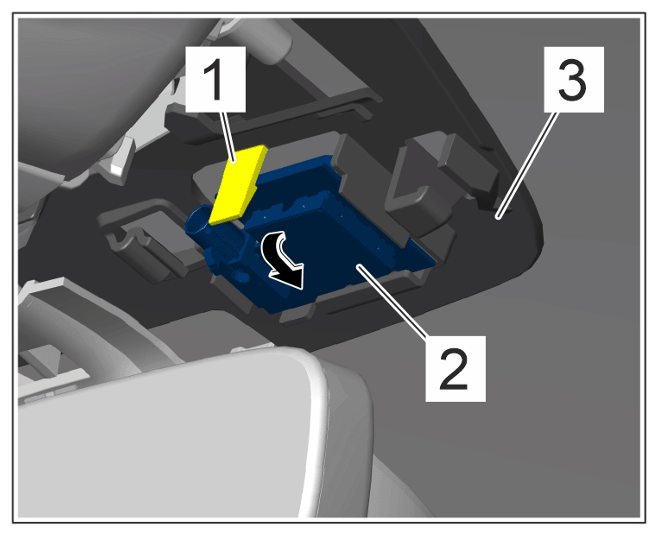

GPS antenna
1. 2.1 Release locking lug -1- .
2. 2.2 Guide -2- GPS antenna -3- out of holder -arrow- .
Remove GPS antenna.
