Removing Front Display And Operator Control Unit
NOTE:
NOTIFICATION
Voltage peaks
Voltage peaks
- Risk of damage to electrical load or to the control unit
→ Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).
→ Switch off electrical loads before disconnecting or removing them.
Information
Always comply with the regulations for handling ESP-sensitive components!
- Assembly work may only be carried out if the mechanic is wearing the working clothes and shoes approved by Porsche.
- The new part must only be removed from the ESD (electrostatic discharge) protective packaging just before installation and at the position at which the part is to be installed.
- The electrical pins or plug contacts must not be touched.

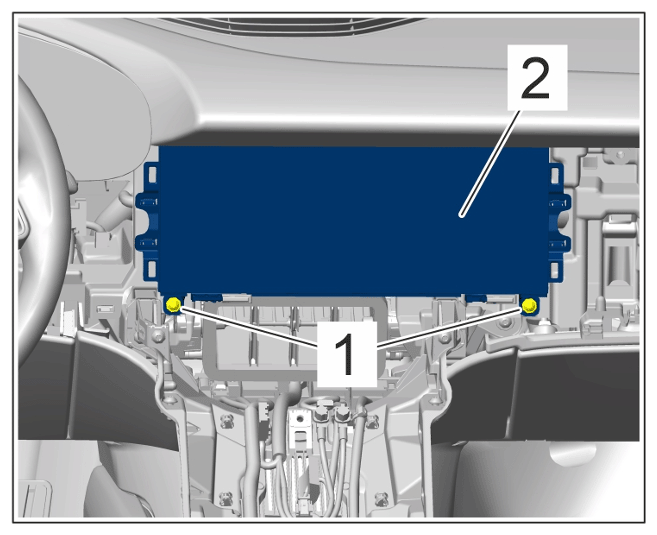

- Unscrew screws -1-
and pull out front display and operator control unit -2-
until the electric plug connections are accessible.
Screws

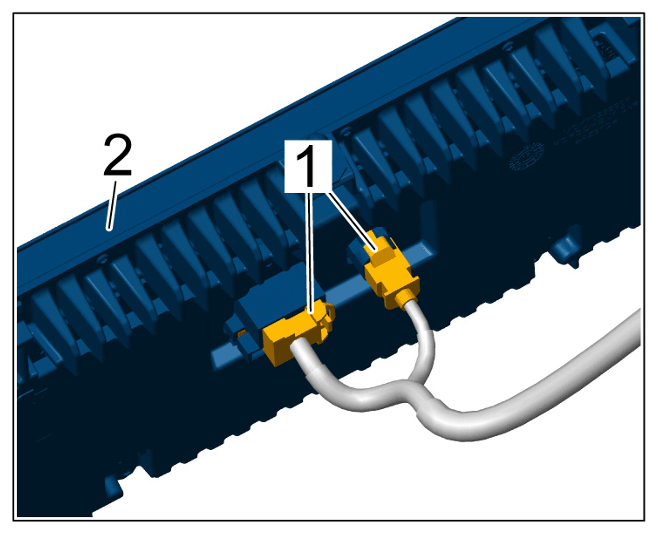

- Release and disconnect electric plug connections -1-
or front display and operator control unit -2-
.
Electric plug connections
- Remove front display and operator control unit from front display and operator control unit (on passenger's side).
