Removing Front Display And Operator Control Unit (On Passenger's Side)

NOTE: NOTIFICATION
Voltage peaks

Risk of damage to electrical load or to the control unit
→ Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).

→ Switch off electrical loads before disconnecting or removing them.

Information

Always comply with the regulations for handling ESP-sensitive components!

Assembly work may only be carried out if the mechanic is wearing the working clothes and shoes approved by Porsche.
The new part must only be removed from the ESD (electrostatic discharge) protective packaging just before installation and at the position at which the part is to be installed.
The electrical pins or plug contacts must not be touched.

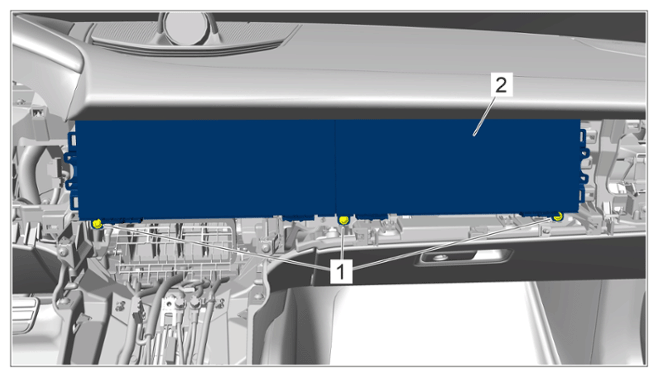

Unscrew screws -1- and pull front display and operator control unit (on passenger's side) -2- down and out until the electric plug connections are accessible.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

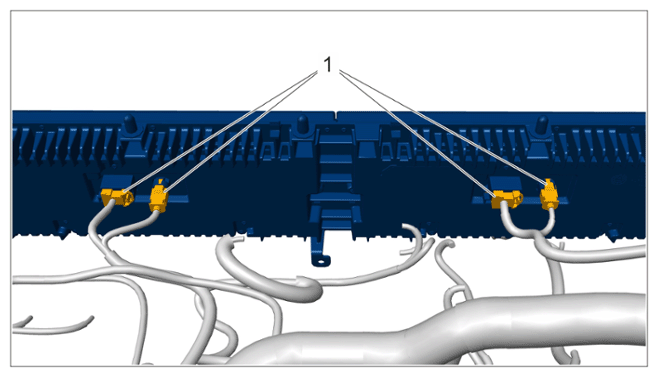

Release and unplug electric plug connections -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connections
Remove front display and operator control unit (on passenger's side).
