Subsequent Work

  1. Install holder for loudspeaker booster -1-  .

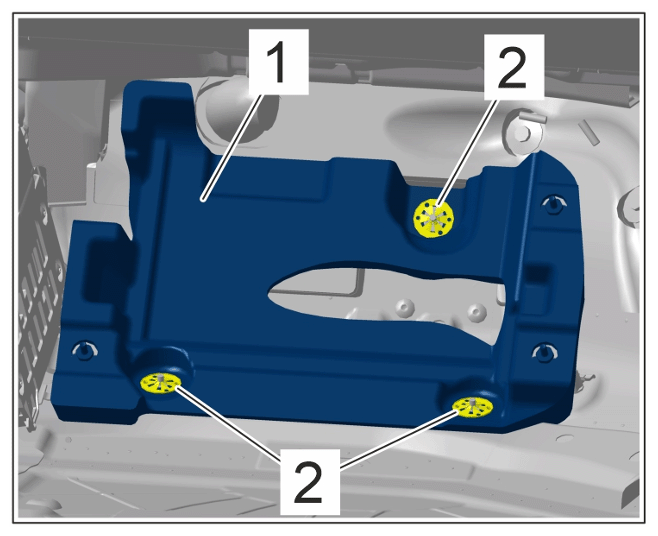

    G15566219Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Holder for loudspeaker booster

    1. 1.1  Place holder for loudspeaker booster in position -1-  .
    2. 1.2  Secure spring clamps -2-  .
  2. Install loudspeaker booster.

    > 914419 REMOVING AND INSTALLING BOSE LOUDSPEAKER BOOSTER

    > 914419 REMOVING AND INSTALLING BURMESTER LOUDSPEAKER BOOSTER

  3. Secure ground strap for battery.

    > 2X00IN WORK INSTRUCTIONS AFTER DISCONNECTING THE BATTERY
