WM, 536919 Removing And Installing Rear Wheel Housing Liner: Notes

Technical values

TECHNICAL VALUE SPECIFICATION

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2

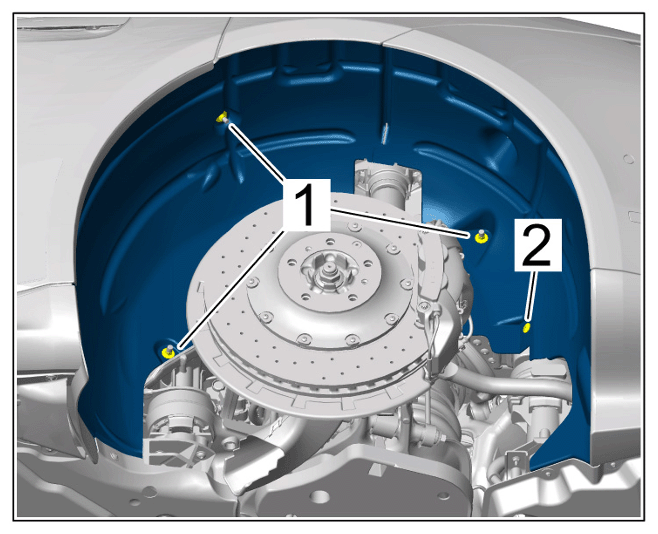

Inner screw securing rear wheel housing liner	Item 2	Tightening torque to body	2.5 (1.75 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws
Inner nuts securing rear wheel housing liner	Item 1	Tightening torque to body	2.5 (1.75 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

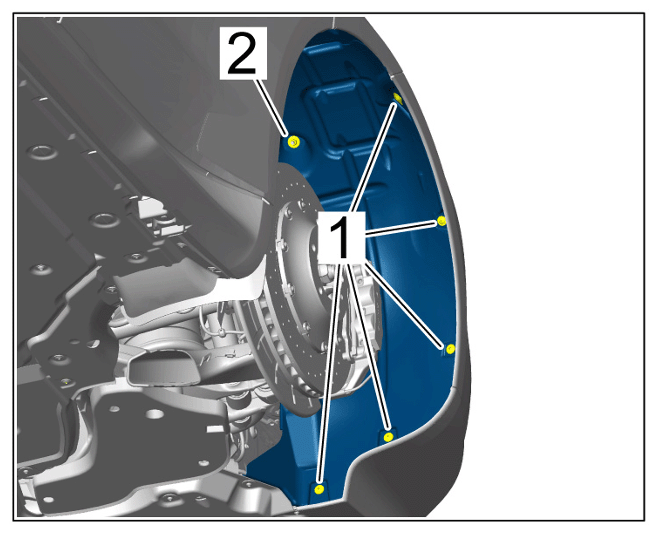

Outer screws securing rear wheel housing	Item 1	Tightening torque liner to body	2.5 (1.75 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws
Outer nut securing rear wheel housing liner to	Item 2	Tightening torque body	2.5 (1.75 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

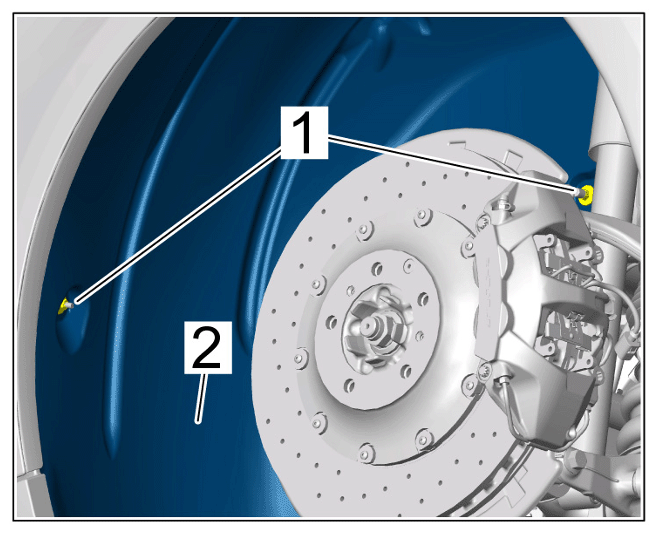

Side nut securing rear wheel housing liner to	Item 1	Tightening torque body	2.5 (1.75 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nut
