WM, 50561903 Removing And Installing Front Wheel Housing Liner (Front Section): Notes
Technical values
TECHNICAL VALUE SPECIFICATION
| Location |
Description |
Type |
Basic value |
Tolerance 1 |
Tolerance 2 |
| Screws securing front wheel housing liner (front section) to front apron and front underbody panelling |
Item 2 |
Tightening torque |
2.5 (1.8 ftlb.) Nm |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.

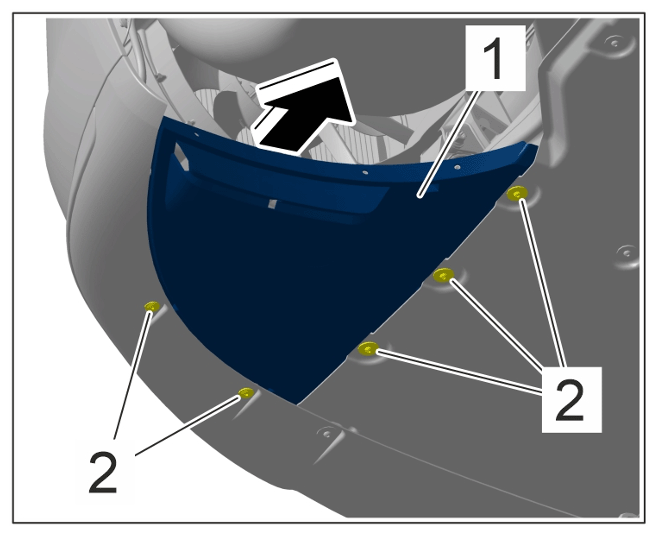

Front wheel housing liner (front section) |
|
|
|
|
|
