WM, 505619 Removing And Installing Front Wheel Housing Liner: Notes

Technical values

TECHNICAL VALUE SPECIFICATION

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2

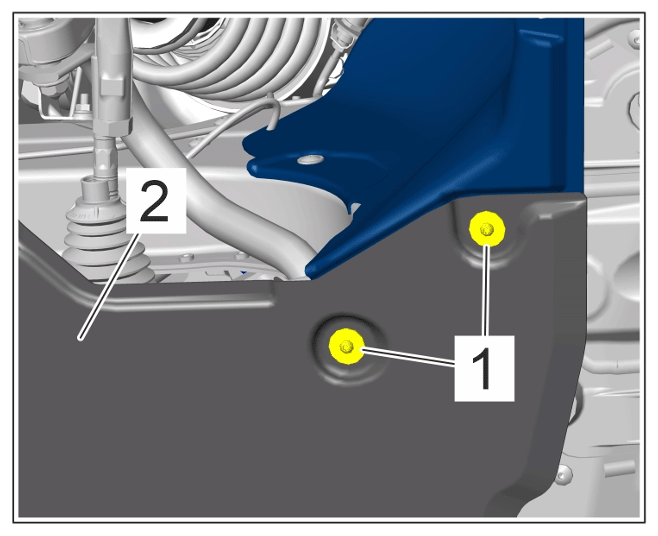

Bottom screws securing front wheel housing	Item 1	Tightening torque liner to underbody cover	2.5 (1.75 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

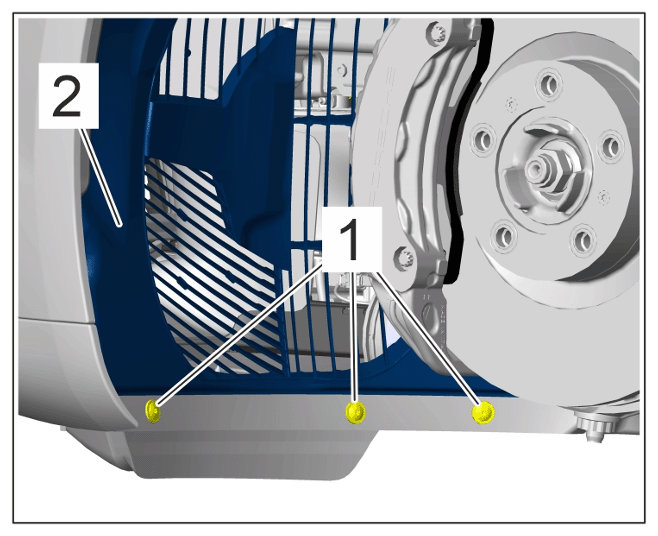

Bottom screws securing front wheel housing	Item 1	Tightening torque liner to front apron	2.5 (1.75 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Bottom screws

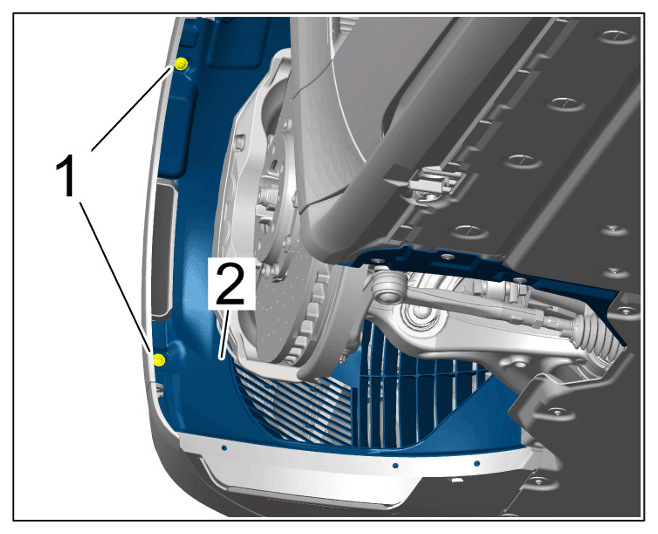

Side screws securing front wheel housing	Item 1	Tightening torque liner to body	2.5 (1.75 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

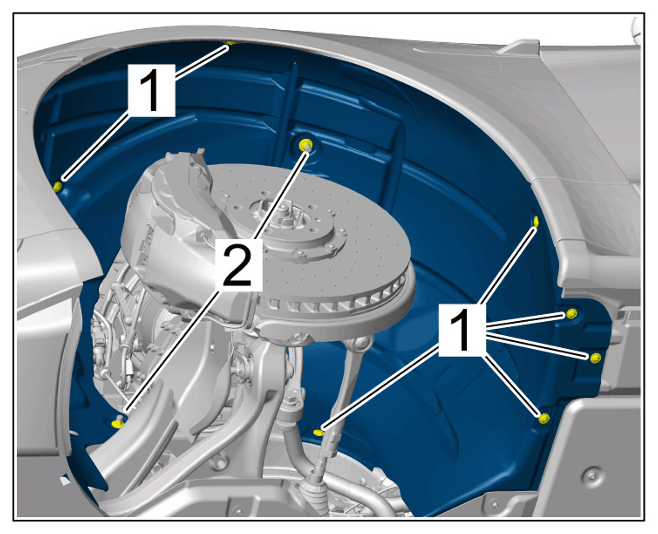

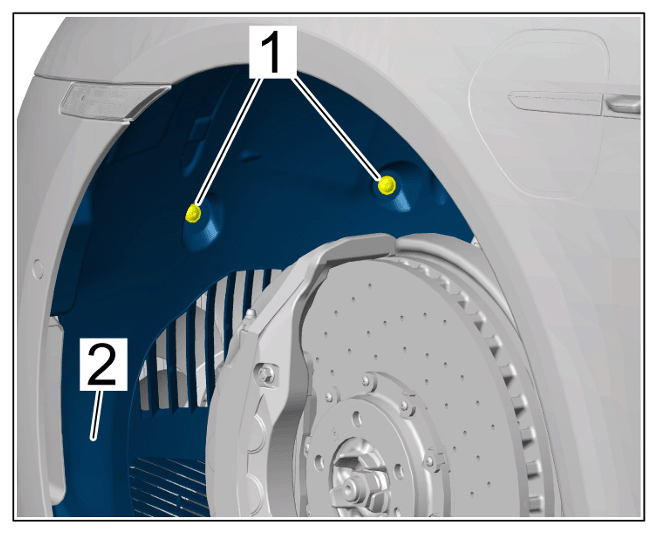

Top screws securing front wheel housing liner	Item 1	Tightening torque to body	2.5 (1.75 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws
Bottom screws securing front wheel housing	Item 1	Tightening torque liner to body	2.5 (1.75 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws
Bottom nuts securing front wheel housing	Item 2	Tightening torque liner to body	2.5 (1.75 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws
