Removing Brake Disc Air Guide On Front Spring Strut

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

1. Remove brake disc air guide -1-  .
   1. 1.1  Cut tie-wrap -2-  .
   2. 1.2  Unscrew screw -3-  .
   3. 1.3  Remove brake disc air guide -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

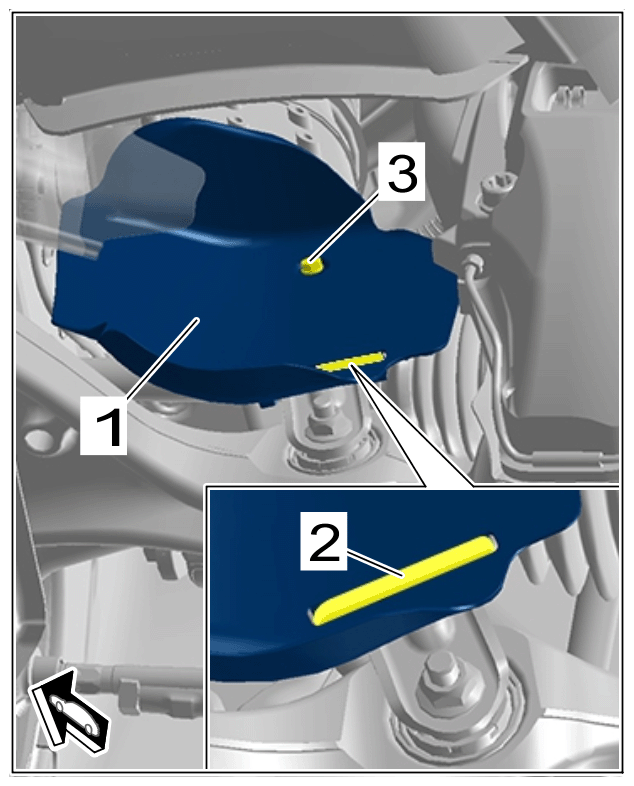

   Brake disc air guide on front spring strut
