Installing Brake Disc Air Guide On Front-Axle Carrier

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

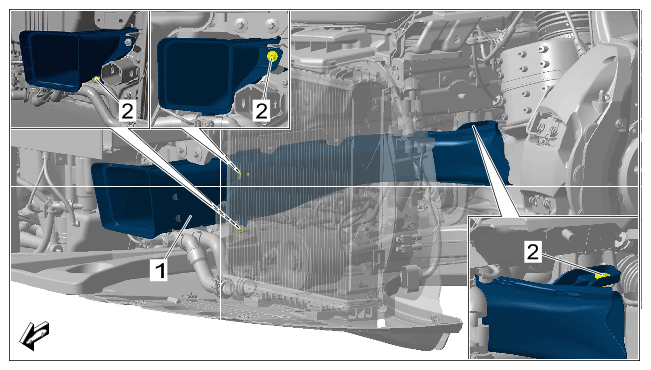

1. Install brake disc air guide -1-  .
   1. 1.1  Position brake disc air guide -1-  .
   2. 1.2  Screw in and tighten screws -2-  .

      > Tightening torque 2.5 Nm (1.75 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Brake disc air guide on front-axle carrier

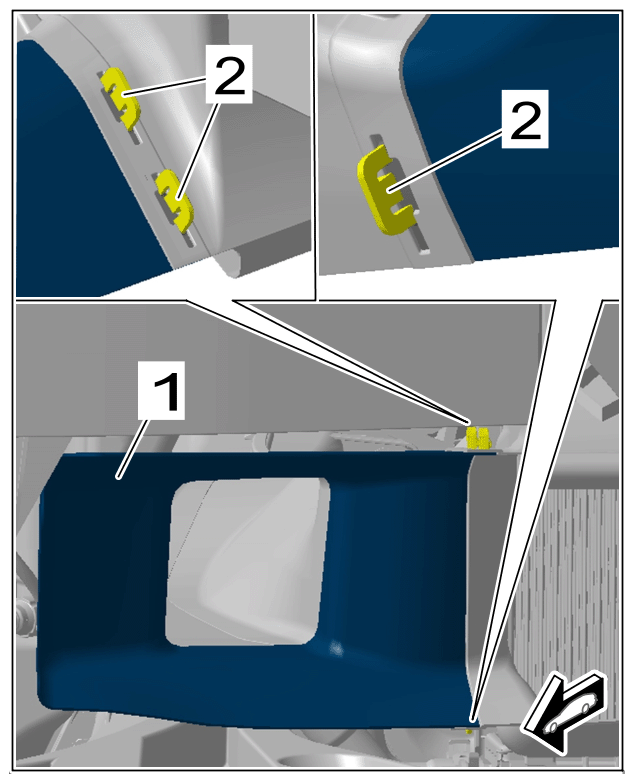

2. Install air guide -1-  .
   1. 2.1  Position air guide -1-  .
   2. 2.2  Clip in retaining lugs -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air guide
