Installing Brake Disc Air Guide On Front Spring Strut

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

1. Install brake disc air guide -1-  .
   1. 1.1  Position brake disc air guide -1-  .
   2. 1.2  Screw in and tighten screw -3-  .

      > Tightening torque 11 Nm (8 ftlb.)

   3. 1.3 Guide new  tie-wrap -2-  in through the brake disc air guide -1-  and secure with > VAS 6927 - Tie-wrap pliers  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

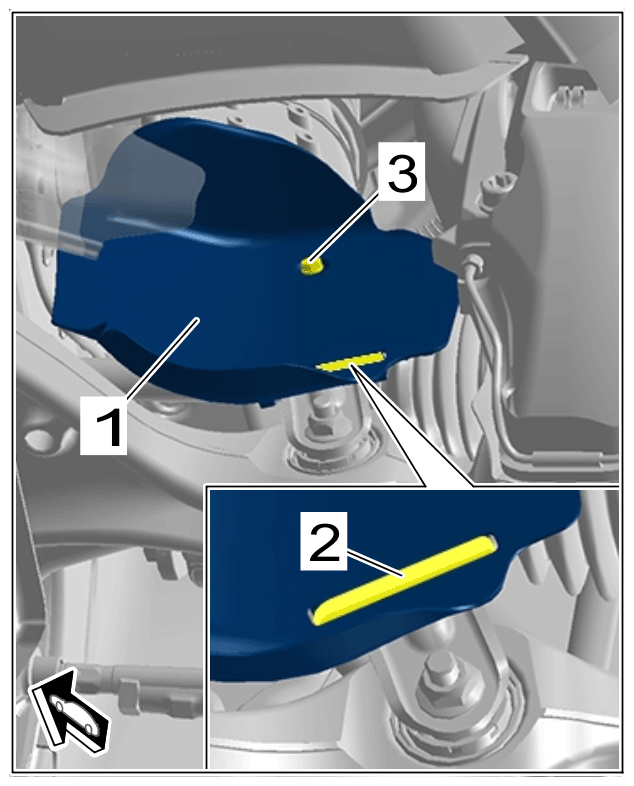

   Brake disc air guide on front spring strut
