Replacing Rear Window

1. 1.1 Removing adhesive strips -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

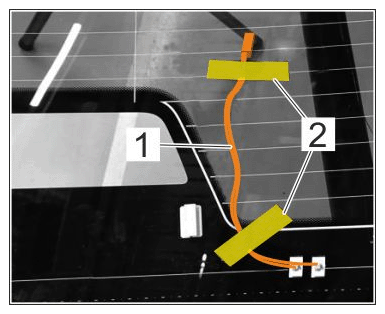

Transport lock

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wire harness

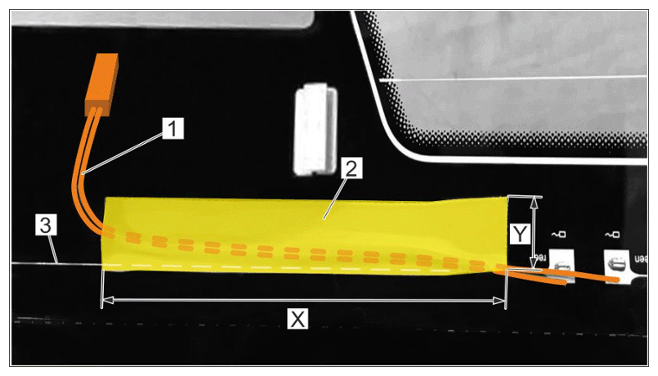

1. 2.1 Adhesive tape > Adhesive tape for bare door shell V04.015.800.B  on dimensions > Length 150 mm  > and > Cut width 25 mm  > to size.
2. 2.2 Position wire harness for aux. brake light -1-  .
3. 2.3 Affix wire harness for aux. brake light -1-  securely along the plumb line -3-  using adhesive tape strips -2-  .
