Subsequent Work

  1. Connect plug connections on the rear window.

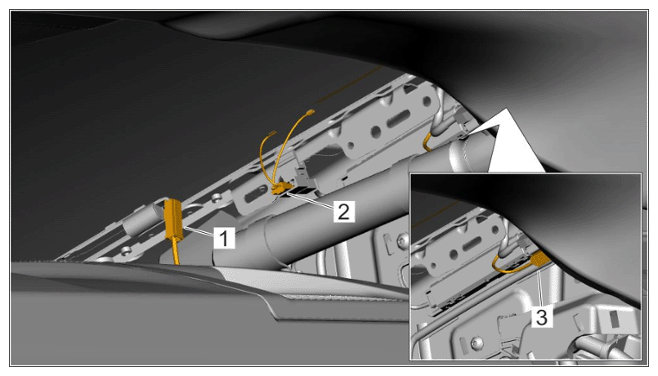

    G15564301Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Plug connections

    1. 1.1 Push on plug connection for rear window heating -1-  .
    2. 1.2 Connect plug connection for antennas -2-  .
    3. 1.3 Connect plug connection for brake light -3-  .
  2. Install (upper part of) C-pillar trim panel.

    > 706819 REMOVING AND INSTALLING C-PILLAR TRIM PANEL (UPPER PART)

    Information

    Allow the window adhesive to harden fully before fitting.

  3. Install additional brake light.

    > 947019 REMOVING AND INSTALLING ADDITIONAL BRAKE LIGHT
