Preliminary Work

  1. Remove additional brake light.

    > 947019 REMOVING AND INSTALLING ADDITIONAL BRAKE LIGHT

  2. Remove (upper part of) C-pillar trim panel.

    > 706819 REMOVING AND INSTALLING C-PILLAR TRIM PANEL (UPPER PART)

  3. Disconnect plug connections at the rear window.

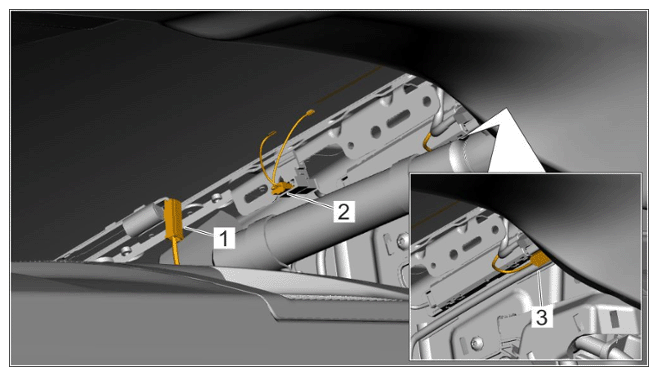

    G15564295Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Plug connections

    1. 3.1 Disconnect plug connection for heated rear window -1-  .
    2. 3.2 Release and disconnect plug connection for antennas -2-  .
    3. 3.3 Release and disconnect plug connection for brake light -3-  .
