Removing Rear Window (Extension)

WARNING: Vehicle windows removed and installed incorrectly

Danger of cuts
Risk of eye injuries
→ Wear personal protective gear.

→ Always shut off power supply when replacing cutting knife.

Information

The procedure for removing car windows is described in
> This article

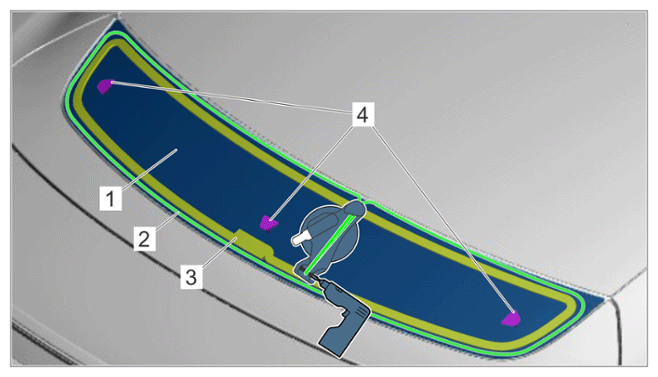

Remove rear window (extension) -1- using cutting cord -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear window (extension)
1. 1.1 Position cutting cord -2- around the rear window (extension) -1- .
2. 1.2 Feed both ends of the cutting cord -2- into > VAS 861 001A - windscreen removal set .
3. 1.3 Slowly cut through the adhesive bead -3- . The centring pins -4- can then be removed.
