Home >> Porsche >> 2020 >> Taycan 4S >> Repair and Diagnosis (Single Page) >> Body & Frame >> Windows >> 64 Glazing, Window Operation -- Y1A - TAYCAN (Y1A) >> WM, 647519 Removing And Installing Rear Side Window >> Removing Rear Side Window

Removing Rear Side Window

  1. Loosen rear side window.

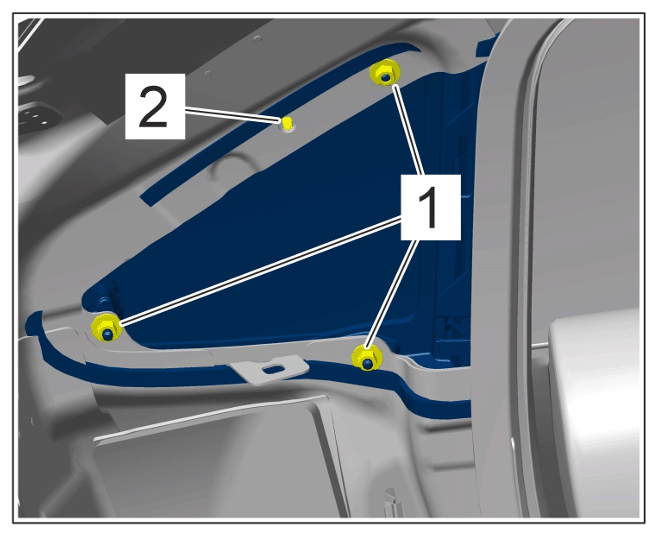

    G15564287Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Nuts

    1. 1.1 Unscrew nuts -1-  .
    2. 1.2 Carefully unclip the rear side window.
    3. 1.3 Loosen the rear side window from the -2-  centring pin.
  2. Remove the rear side window from the moulding.
