Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Nut securing rear power windows mechanism to door Item 1 Tightening torque 7.5 Nm (5.5 ftlb.)

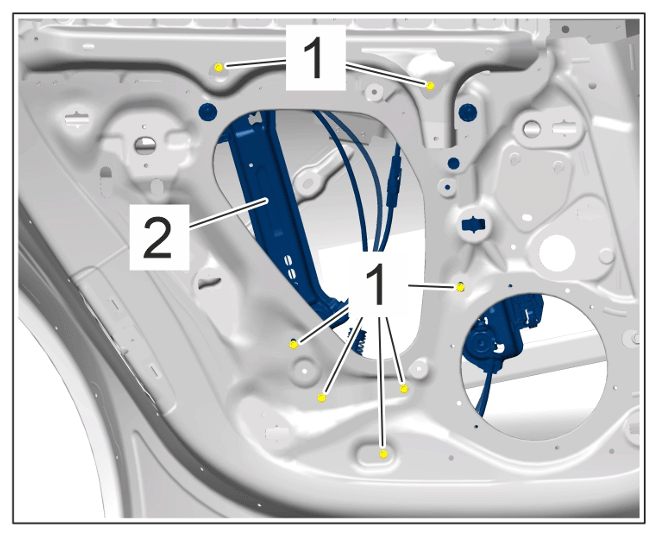

G15564279Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts
